General machine info

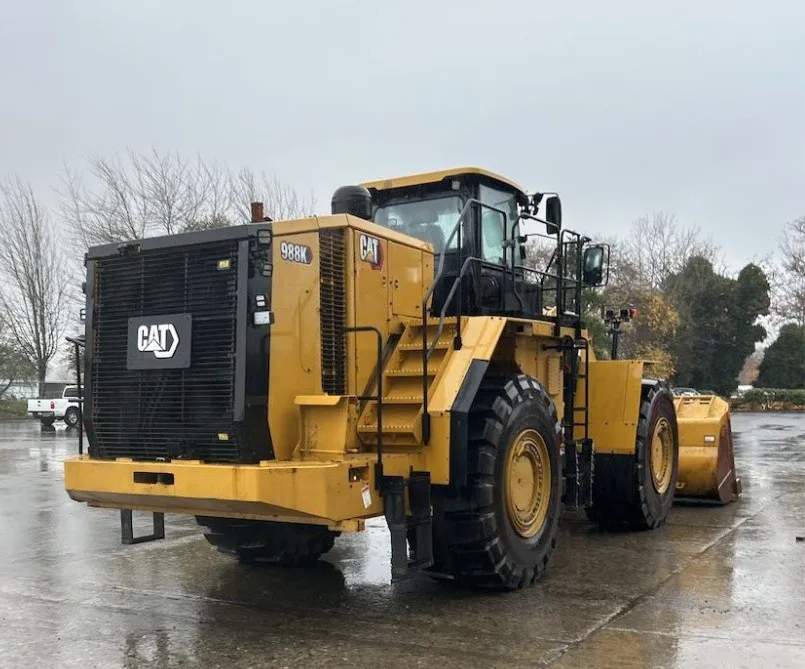

Q1: What type of machine is the CAT 988K High Lift?

A1: The CAT 988K High Lift is a large wheel loader designed for heavy-duty quarry, mining, and aggregate handling applications where extra dump clearance is required to load larger trucks efficiently.

Q2: What is the main difference between the standard 988K and the 988K High Lift?

A2: The 988K High Lift uses a special high-lift linkage that provides greater dump clearance and B-pin height, allowing it to comfortably load taller trucks such as the Cat 773 and 775.

Q3: Is the 988K High Lift suitable for continuous production work?

A3: Yes. It is built as a production-class loader with heavy-duty structures, long-life components, and pass-matched buckets for high-volume material movement at a low cost per ton.

Performance and capacity

Q4: What is the rated payload of the 988K High Lift?

A4: The 988K High Lift has a rated payload of about 11.3 tonnes for quarry face material and around 14.5 tonnes for loose material, depending on configuration.

Q5: What bucket sizes are available for the 988K High Lift?

A5: Bucket capacity typically ranges from about 4.7 m³ to 13 m³ (6.2–17 yd³), allowing configuration for dense rock, general aggregates, or lighter bulk materials.

Q6: What trucks can the 988K High Lift load?

A6: In high-lift configuration, the 988K is designed to load Cat 773 and 775 off-highway trucks in approximately 5–6 passes, depending on material and bucket choice.

Engine, powertrain, and fuel

Q7: What engine powers the 2023 CAT 988K High Lift?

A7: The 988K High Lift is powered by a Cat C18 diesel engine engineered for high torque, reliability, and fuel efficiency in demanding loading applications.

Q8: Does the 988K High Lift offer any fuel-saving features?

A8: Yes. It incorporates features such as economy operating modes, auto-engine idle shutdown, and efficient positive-flow hydraulic control to reduce fuel burn per ton moved.

Q9: Is there an electric-drive version related to the 988K?

A9: Yes. The Cat 988K XE is an electric-drive variant of the 988K that can deliver up to around 25% better overall fuel efficiency and higher productivity in some applications.

Dimensions and high-lift linkage

Q10: Why choose the High Lift configuration instead of the standard linkage?

A10: The High Lift linkage provides increased dump clearance and lift height, which is ideal when stockpiles are high or when loading taller on-highway or off-highway trucks.

Q11: Does the High Lift configuration affect stability?

A11: The high-lift arrangement uses appropriate counterweighting and robust linkage design to maintain machine stability, but correct bucket selection and safe loading technique remain essential.

Q12: Can the 988K High Lift still work effectively in tight loading areas?

A12: Yes. The loader is designed with generous steering articulation and responsive hydraulics so it can position accurately for loading even in confined quarry or yard spaces.

Operator comfort and controls

Q13: What features improve operator comfort on the 988K High Lift?

A13: The 988K offers a pressurized cab with low noise levels, an air suspension seat, reduced vibration through isolated cab mounts, and automatic climate control.

Q14: What kind of controls does the operator use?

A14: Electro-hydraulic implement and steering controls with integrated functions help reduce operator effort and enable precise, repeatable bucket and steering movements.

Q15: Are visibility and camera systems available?

A15: Yes. The 988K can be equipped with Cat Vision rearview camera and optional Cat Detect with radar, along with various lighting packages to improve all-around visibility.

Safety and technology

Q16: What safety features are standard on the 988K High Lift?

A16: Safety features typically include wide access stairs with handrails, non-slip surfaces, a 3-inch seat belt, backup camera options, and integrated warning and monitoring systems.

Q17: Does the 988K support operator coaching or productivity tools?

A17: Modern 988K and 988K XE loaders can be integrated with Cat production and operator-coaching technologies to improve bucket fill factors, cycle times, and fuel efficiency.

Q18: Are fire suppression or additional safety systems available?

A18: Depending on region and dealer, the 988K can be configured with optional fire suppression systems and additional safety packages tailored for mining and quarry regulations.

Maintenance and ownership

Q19: How is maintenance access on the 988K High Lift?

A19: The loader is designed with grouped service points, wide platforms, and ground-level access to many filters and drains, reducing service time and improving safety.

Q20: Does the 988K support condition monitoring?

A20: Yes. It can be equipped with telematics and condition monitoring to track fuel use, production, fault codes, and maintenance intervals for better fleet management.

Q21: Is the 988K High Lift covered by dealer support packages?

A21: Caterpillar dealers commonly offer support options, such as preventive maintenance plans, parts availability agreements, and rebuild programs, to extend machine life and uptime.
