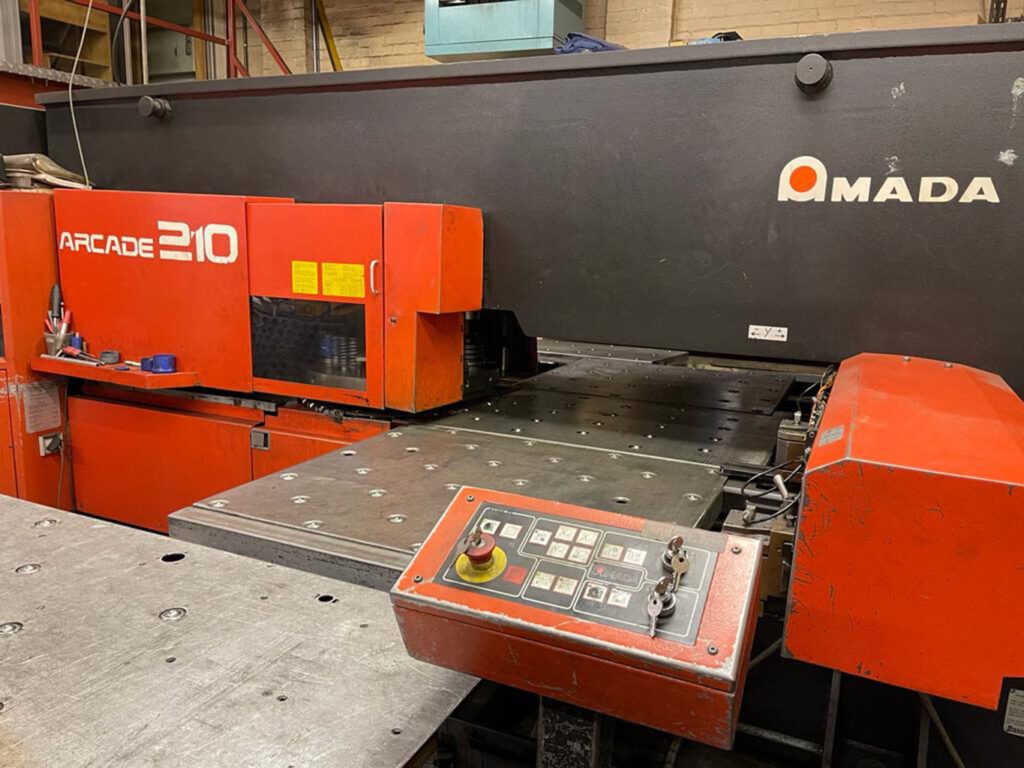

FOR SALE: This clean Amanda Arcade 210 is a hydraulic CNC turret punch machine featuring a low-resonance bridge construction for optimal performance.

This used CNC Press is in excellent condition and looking for a good home.

This hydraulic punch machine has a revolver that can accommodate 19 tool stations, including three rotation stations. This feature ensures a wide range of processing capabilities and swift tool utilisation.

The ARCADE-212 is known for its high travel speeds and minimal processing times, making it a highly efficient machine.

One of the unique features of this machine is its off-centre turret arrangement. This design allows for punching large format sheets, with the capability for repositioning and turning.

Developed in Europe, the ARCADE hydraulic punch machine is recognised for its excellent value for money, offering a proven balance between cost and performance.

Amanda Arcade 210 CNC Punch Press Machine Turret Technical Information

Pressure 20 tonnes

Maximum punching diameter 88.9mm

The working range on the cross-side (X-axis) is 1279/2540 mm with reposition

Working range along (Y-axes) 1000mm

Control Fanuc

Number of stations 19 (16 fixed +3 Auto Index)

9x A Stations
7 x B Stations
1 x C Station Auto Index
2 x D Stations

The power needed 25 Kva

Complete with loading and light guards

Transport Dimensions

Length (L) 4425 mm
Width (W) 2800 mm
Height (H) 2050 mm
Weight 9200 kg

For interested buys, you can view the machine in action on YouTube.

Contact the seller on mobile at Tel +447739107050 or view our contact details.
