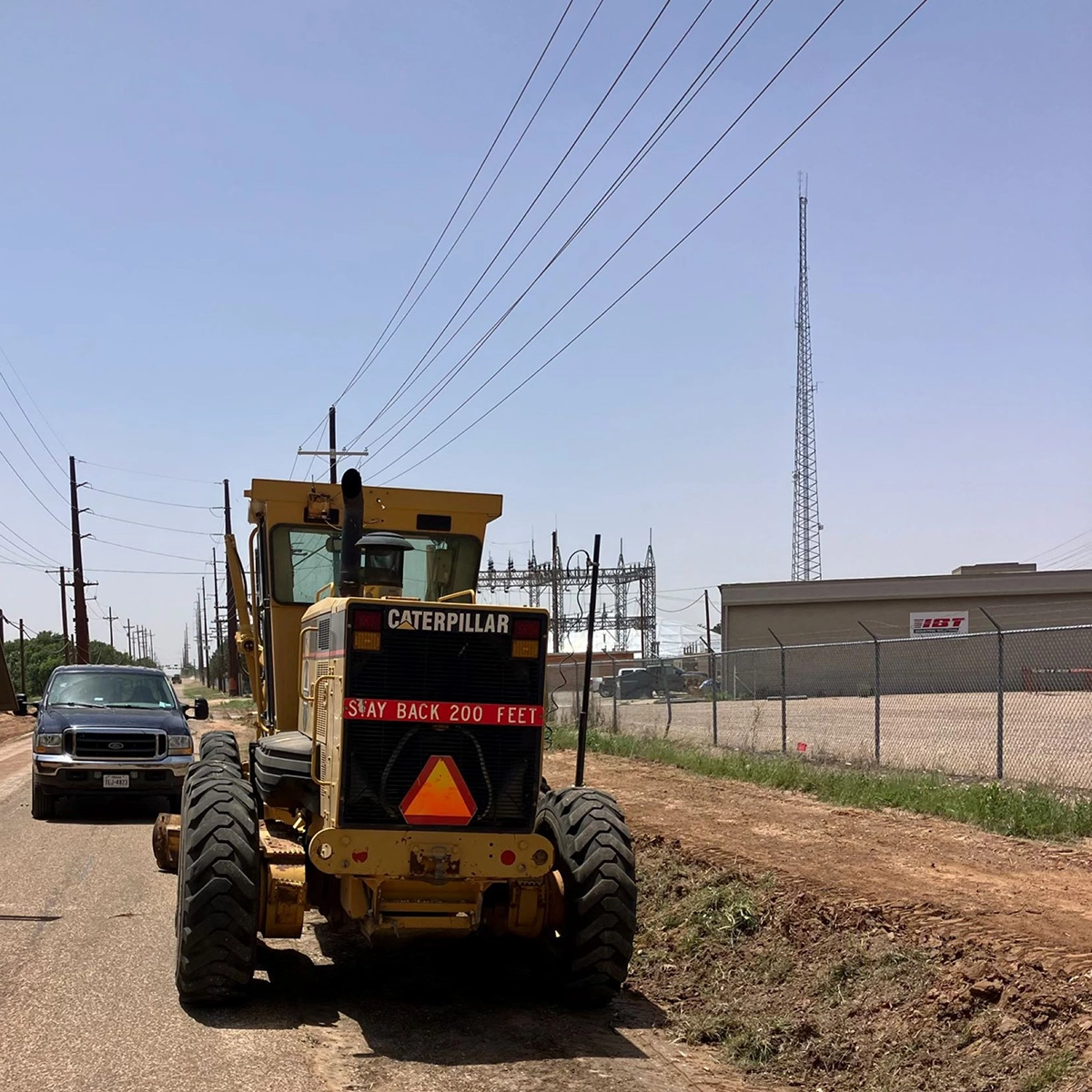

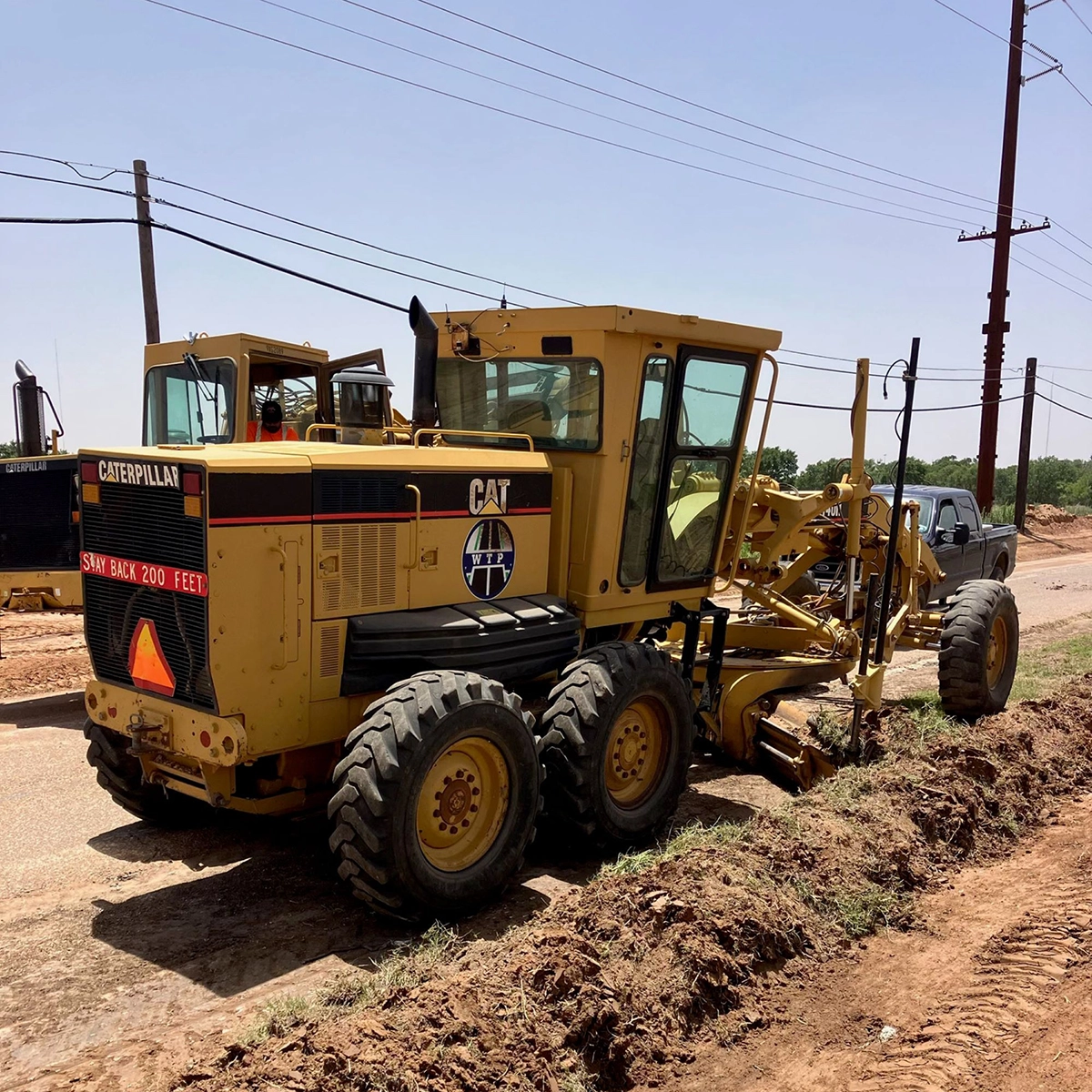

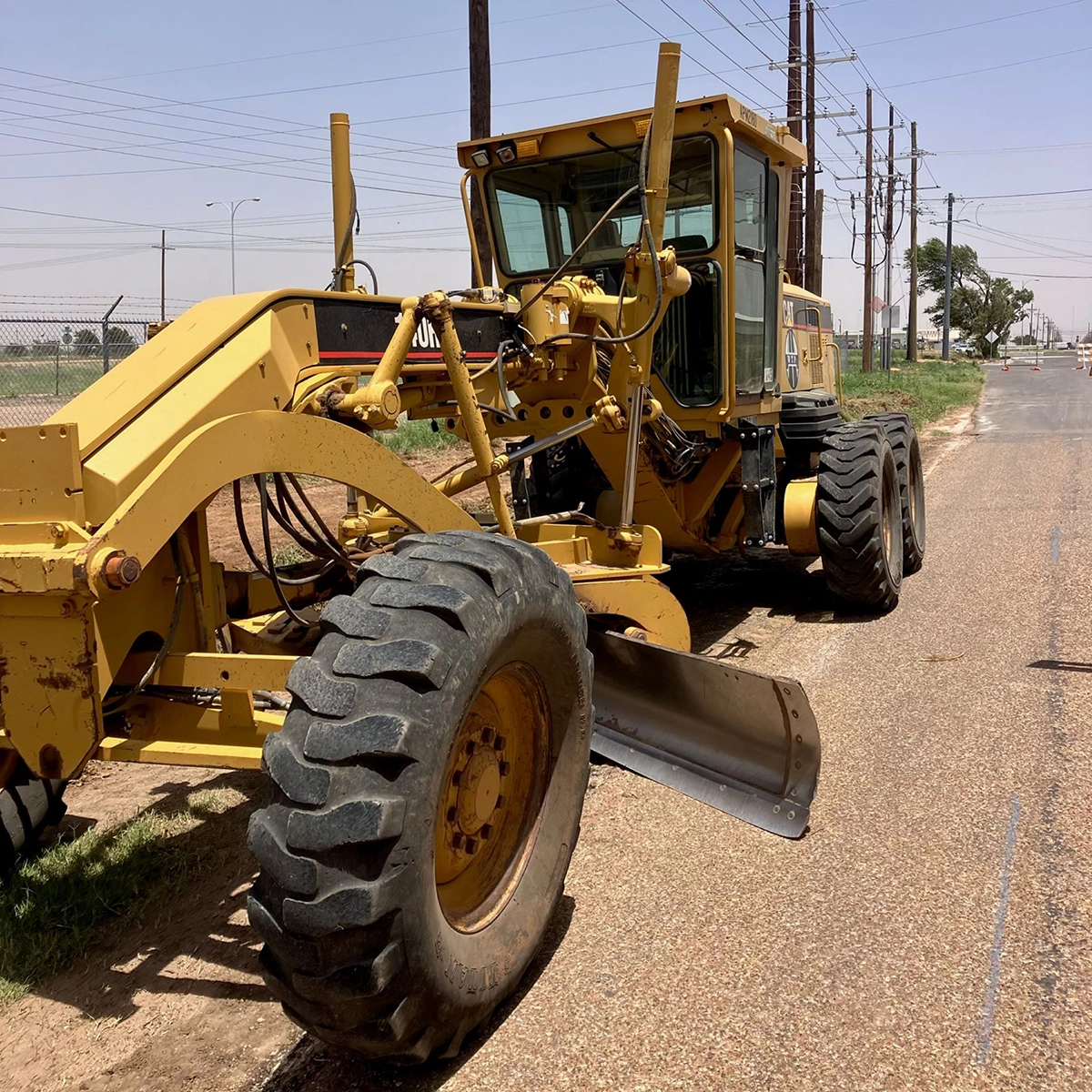

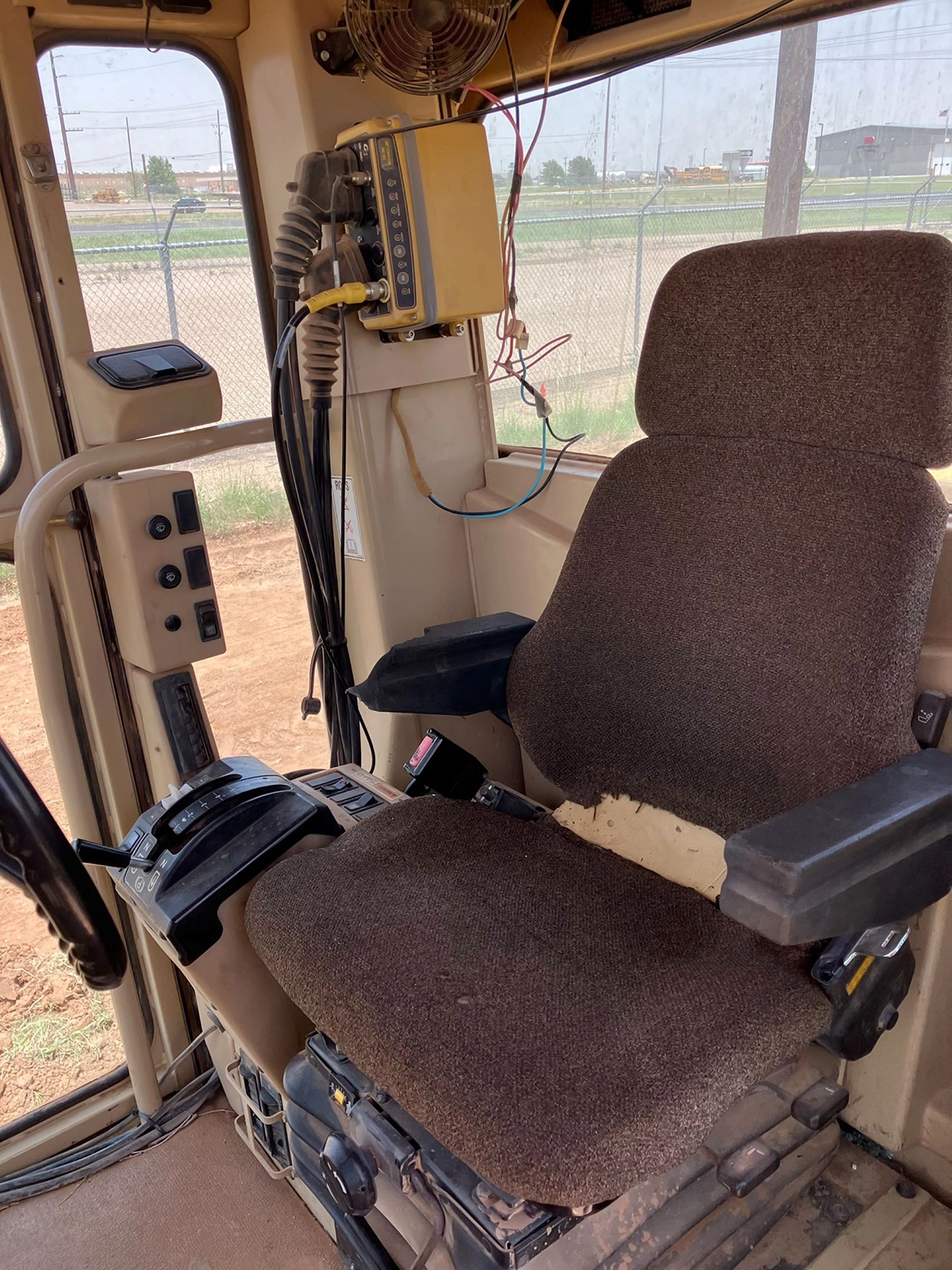

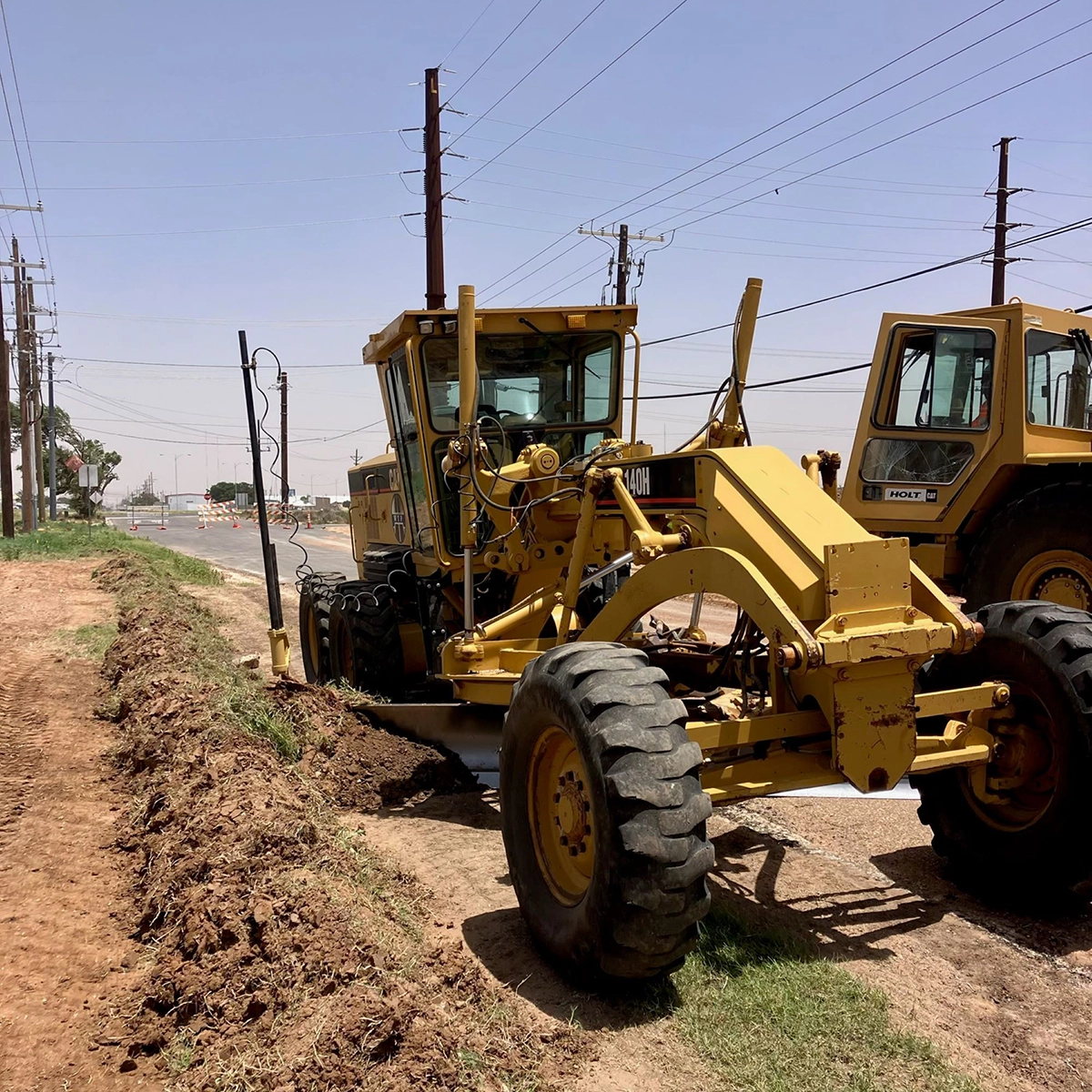

2005 CAT 140H Motor Grader For Sale TX Verified listing

Contact Mike Berry at Strickland Equipment Company

Telephone: +1 972-713-0208
Cell: +1 214-957-7106
Email: [email protected]

Visit Strickland's Website

Address

Opening Times

• Monday to Friday: 8:00 AM – 6:00 PM
• Saturday: 8:00 AM – 1:00 PM
• Sunday: Closed

About the Seller - Strickland Equipment Company

Strickland Equipment Co. specializes in providing high-quality construction and mining equipment. We assist buyers in finding the used machinery they need, ensuring a smooth and seamless purchase experience.

Used Equipment Sellers – List Your John Deere 772GP or Other Machinery on PlantClassifieds

Add Your Used Equipment for Sale to PlantClassifieds

You can find additional motor graders for sale on PlantClassifieds.

2005 CAT 140H Motor Grader Specifications

The Caterpillar 140H Motor Grader is a widely used machine in construction and earthmoving, known for its robust performance and reliability. Below are the detailed specifications for the 2005 model year, based on the most relevant and authoritative sources.

Engine

• Model: Caterpillar 3306 Turbocharged
• Net Power: 165–185 hp (varies by gear and configuration)
• Displacement: 629–640.7 cu in (10.3–10.5 L)
• Number of Cylinders: 6
• Power at: 2000 rpm

Transmission

• Type: Direct drive, power shift, electronic control
• Forward Gears: 8
• Reverse Gears: 6
• Max Forward Speed: 27.4–28 mph (44–45 km/h)
• Max Reverse Speed: 21.6–22 mph (35 km/h)

Blade (Moldboard)

• Width: 12 ft (3.66 m)
• Height: 24 in (610 mm)
• Thickness: 1 in (25 mm)
• Blade Capacity: 6.5 cu yd
• Cutting Edge: Replaceable
• Max Depth of Cut: 28 in (71 cm)
• Blade Tip Angle (Front/Rear): 40° / 5°
• Max Lift Above Ground: 19 in (48 cm)
• Max Reach Outside Tires: Left 75 in (189 cm), Right 78 in (198 cm)
• Side Shift: Left 21 in (52 cm), Right 26 in (66 cm)

Hydraulics

• Pump Type: Axial piston
• Relief Valve Pressure: 3,500 psi
• Hydraulic Tank Capacity: 20 gal (76 L)

Dimensions

• Length: 28.6–29.5 ft (8.7–9.0 m)
• Width: 8.08–8.4 ft (2.46 m)
• Height to Top of Cab: 10.1–10.25 ft (3.08–3.12 m)
• Wheelbase: 20.24 ft (6.17 m)
• Tandem Axle Wheelbase: 5 ft (1.52 m)
• Turning Radius: 24.1–24.6 ft (7.35–7.5 m)
• Ground Clearance: 2 ft (0.61 m)

Weights

• Operating Weight: 34,000 lb (15,422 kg)
• Max Operating Weight: 46,872 lb (21,261 kg)
• Front Axle (Std/Max): 9,123 lb / 16,733 lb
• Rear Axle (Std/Max): 23,234 lb / 30,139 lb

Performance

• Maximum Blade Down Pressure: 23,000–28,698 lb
• Maximum Blade Pull: 40,000–42,184 lb
• Articulation Angle: 20°
• Oscillation Total: 32°
• Wheel Lean: 18°

Capacities

• Fuel Tank: 65 gal (246 L)
• Hydraulic System: 20 gal (76 L)
• Engine Oil: 7 gal (26 L)
• Cooling System: 10 gal (38 L)
• Rear Diff/Final Drive: 12 gal (47 L)
• Tandem Case (each): 17 gal (64 L)
• Circle Gearbox: 2 gal (7 L)

Electrical

• Operating Voltage: 24 V
• Alternator Output: 50 amps

Tires

• Standard Size: 14-24 10PR (G-2)

Summary Table

These specifications cover the main aspects of the 2005 CAT 140H Motor Grader, making it suitable for a wide range of heavy-duty grading and earthmoving tasks.
