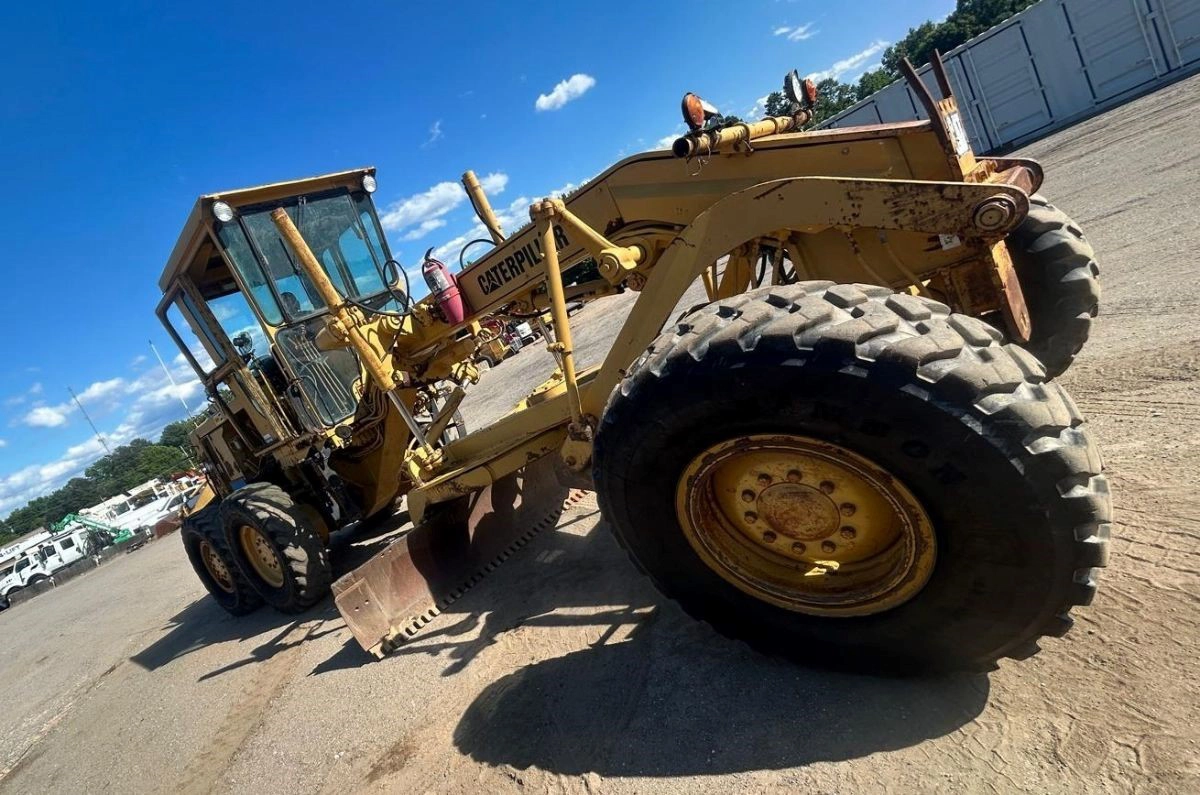

1993 CAT 140G Motor Grader For Sale SC Verified listing

Contact Mike Berry at Strickland Equipment Company

Telephone: +1 972-713-0208
Cell: +1 214-957-7106
Email: [email protected]

Visit Strickland's Website

Address

Opening Times

• Monday to Friday: 8:00 AM – 6:00 PM
• Saturday: 8:00 AM – 1:00 PM
• Sunday: Closed

About the Seller - Strickland Equipment Company

Strickland Equipment Co. specializes in providing high-quality construction and mining equipment. We assist buyers in finding the used machinery they need, ensuring a smooth and seamless purchase experience.

Used Equipment Sellers – List Your John Deere 772GP or Other Machinery on PlantClassifieds

Add Your Used Equipment for Sale to PlantClassifieds

You can find additional motor graders for sale on PlantClassifieds.

1993 CAT 140G Motor Grader Specifications

Engine

• Model: Caterpillar 3306, turbocharged, 6-cylinder
• Net Power (Gears 5–6): 150 hp (111.9 kW)
• Displacement: 10.5 L (638 cu in)

Dimensions

• Overall Length: 8,310 mm (27.3 ft)
• Height to Top of Cab: 3,360 mm (11 ft)
• Width Over Tires: 2,440 mm (8 ft)
• Wheelbase: 5,920 mm (19.4 ft)
• Blade Base: 2,570 mm (8.4 ft)

Operating Weight

• Standard Operating Weight: 12,620 kg (27,822 lbs)

Capacities

• Fuel Tank: 284 L (75 gal)
• Engine Oil: 29.3 L (7.7 gal)
• Hydraulic System: 68 L (18 gal)
• Cooling System: 47.3 L (12.5 gal)

Transmission

• Type: Direct drive, powershift
• Number of Gears: 6 forward / 6 reverse
• Max Forward/Reverse Speed: 41 km/h (25.5 mph)

Steering and Axle

• Turning Radius: 7.3 m (24 ft)
• Articulation (L/R): 50°
• Front Axle Ground Clearance: 610 mm (2 ft)
• Wheel Lean: 18°
• Total Oscillation: 32°

Electrical

• Operating Voltage: 24 V
• Alternator: 40 amps

Tires

• Standard Size: 14×24 10PR

Hydraulic System

• Pump Type: Closed-centre, constant-pressure, variable displacement piston pump
• Pump Flow: 193.1 L/min (51 gal/min)
• Relief Valve Pressure: 14,823.7 kPa (2,150 psi)

Moldboard (Blade)

• Width: 3,660 mm (12 ft)
• Height: 610 mm (24 in)
• Thickness: 22 mm (0.87 in)
• Max Depth of Cut: 438 mm (17.2 in)
• Side Shift (L/R): 660 mm (26 in)

Circle

• Rotation: 360°
• Diameter: 1,530 mm (60.2 in)
• Shift (Left): 650 mm (25.6 in)
• Shift (Right): 520 mm (20.5 in)
• Max Reach Outside Tires (L): 1,960 mm (77.2 in)
• Max Reach Outside Tires (R): 1,830 mm (72 in)
• Max Lift Above Ground: 464 mm (18.3 in)

Additional Notes

The 140G was available with optional all-wheel drive, which improved traction and performance in challenging conditions. Variations in minor specifications may exist depending on the manufacturing location and optional equipment fitted. These specifications make the CAT 140G a versatile and robust choice for road construction, maintenance, and general grading applications.

The specifications provided are for general reference only and are subject to change without notice. Actual reference to the listed equipment may vary. The seller doesn't make any warranties, express or implied, and takes no liability for damages caused by use or reliance on this information. Always verify compliance with applicable regulations and consult an authorized dealer or manufacturer for detailed guidance.
