Used Equipment Price
850000
Used Plant Equipment Description

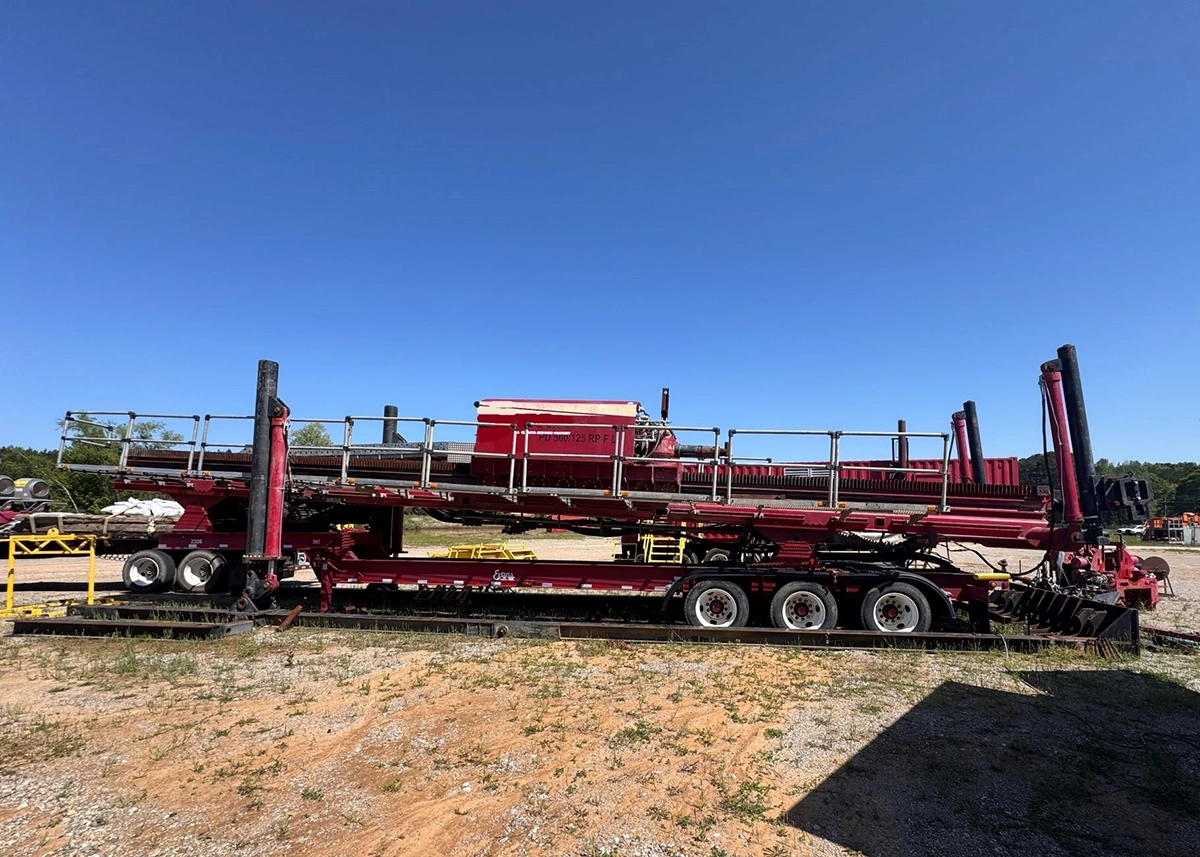

2010 Prime PD500 120RP Directional Drill – Used Equipment Listing
Price: $850,000 USD Ex Works, near Port Houston, Texas
Equipment Specifications
- Manufacturer: Prime
- Model: PD 500 Directional Drill
- Year of Manufacture: 2010
- Original New Price: $3,000,000 (new units unavailable)

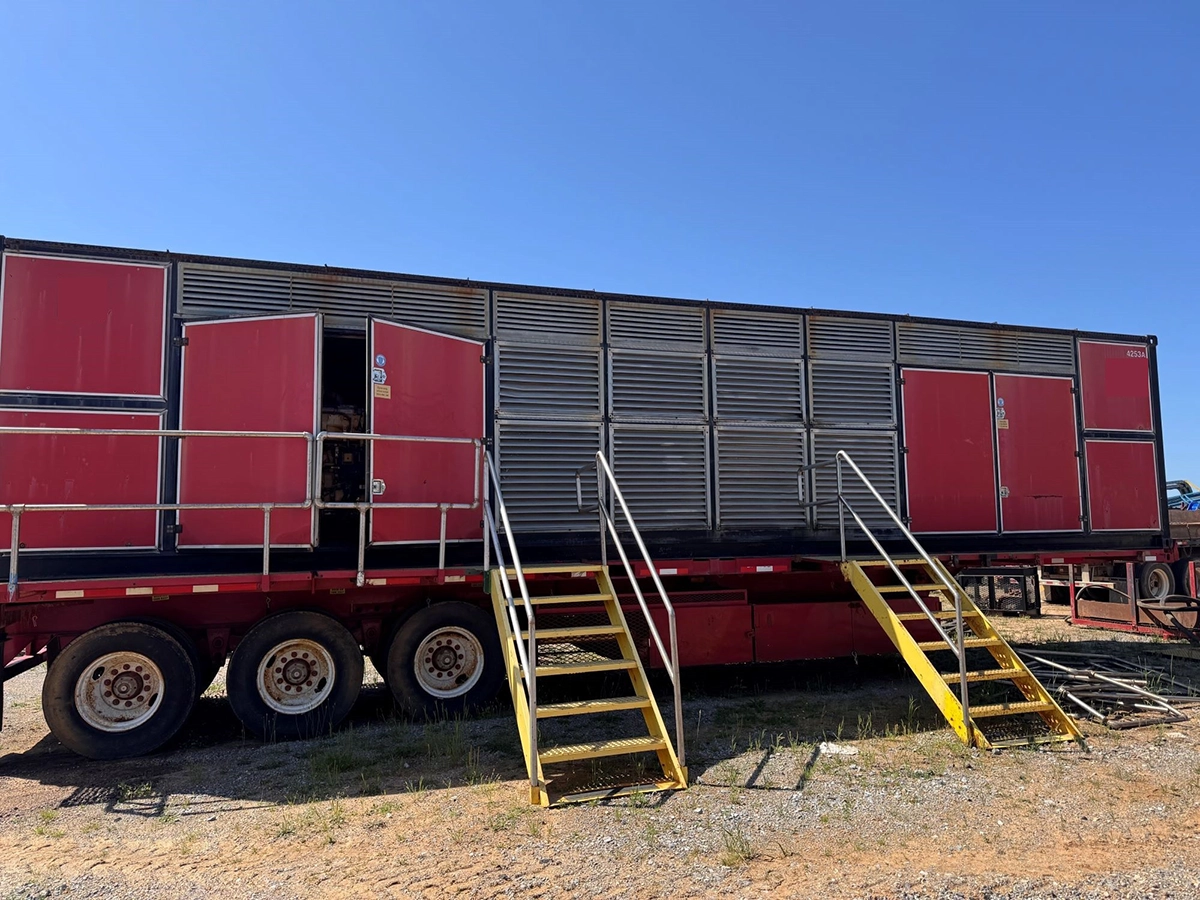

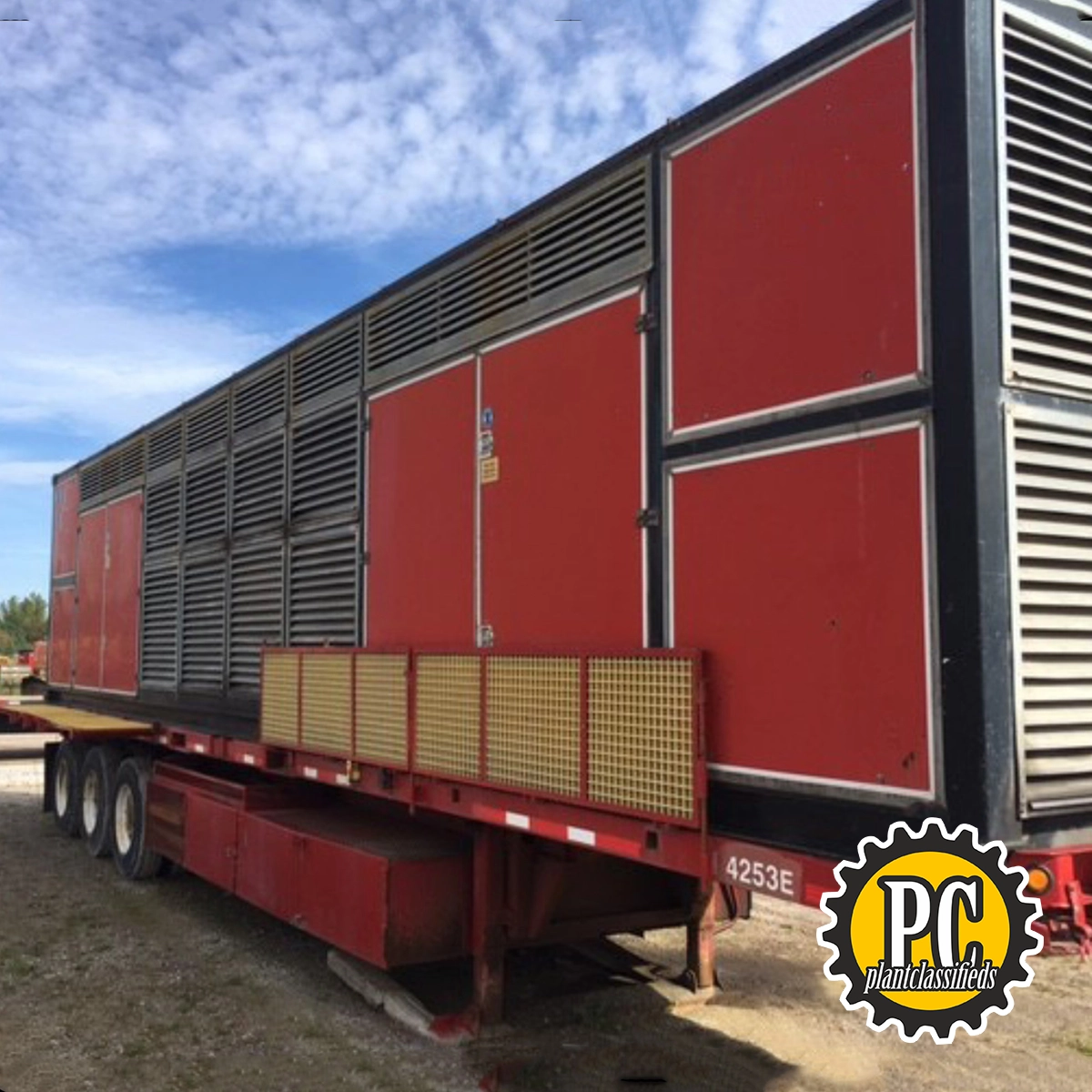

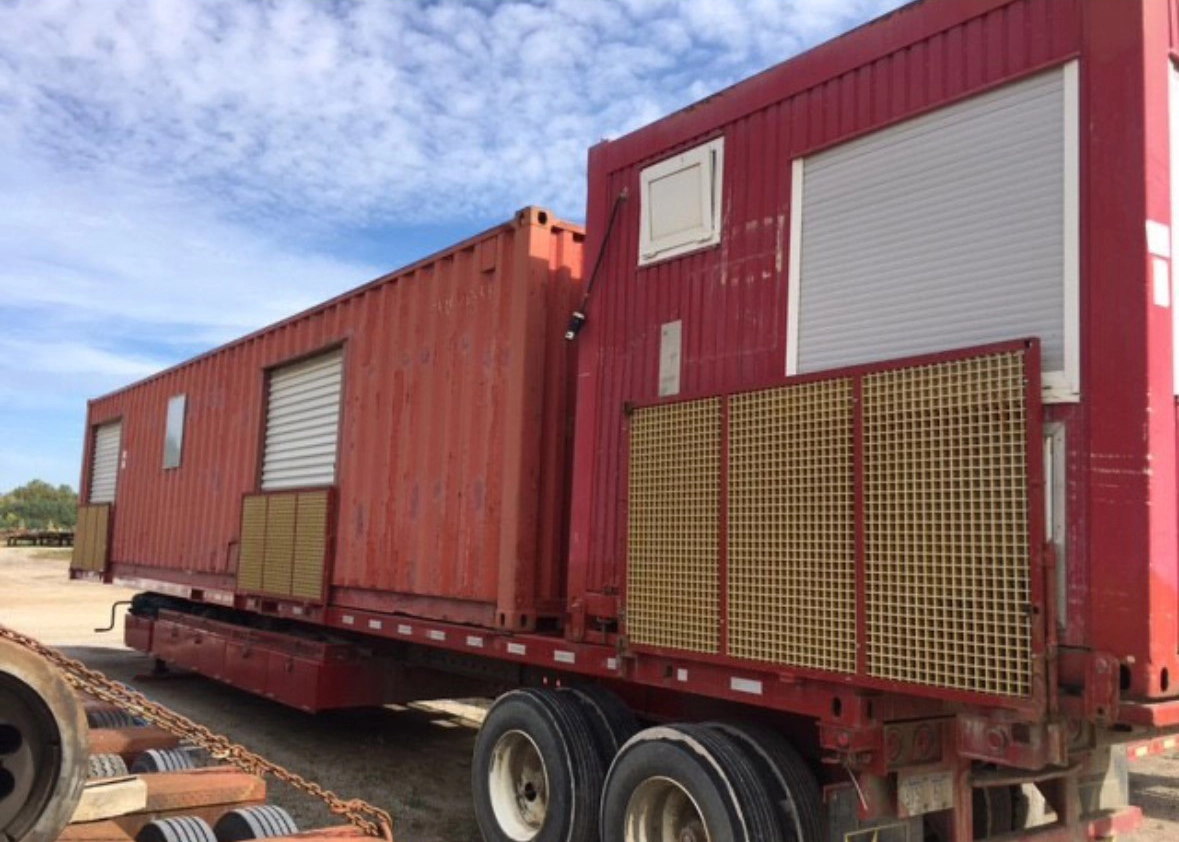

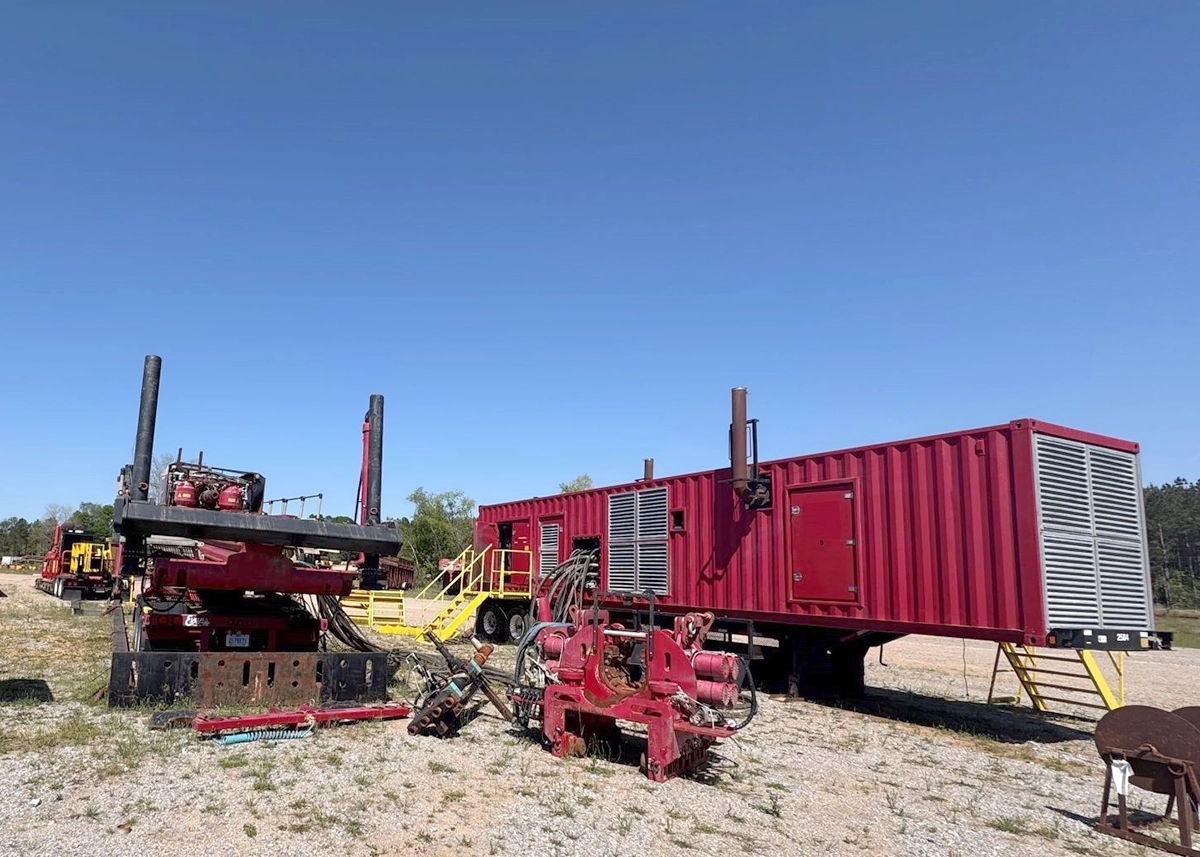

- Configuration: Mast, drill head, mud pump, control cabin
- Power: Heavy-duty diesel engine (specs available upon request)
- Drill Capacity: Up to 30 in (750 mm) bore size
Features
- Fully integrated PLC controls with touchscreen interface
- Automated pipe handling and rod loading system
- On-board diagnostics and fault-code reporting
- Low-emission Tier 4 Final engine compliant
- Hydraulic breakout wrench and rod spinner included
- Quick-attach drill head for rapid swap-out
Serial Number
Available upon request (exact SN and build records provided to qualified buyers).
Condition
Used – Excellent working order.
Fully serviced and inspected by certified technicians.
All fluid levels, filters, and wear parts replaced within last 50 hours.
Job Ready: drift-tested and demonstrated onsite.
Photos & Videos
Additional high-resolution photos are available.
Pricing
Asking Price: $850,000 USD (Ex Works, near Port Houston, Texas)
Comparison: New unit list price $3,000,000 (units not currently available new)
Payment Terms: Bank transfer; leasing options negotiable.
Location
Ex Works: Facility near Port Houston, Texas, USA
Additional Information
Additional photos are available upon request.
Contact Information
For more details, photos, or to schedule an inspection, please contact the seller directly.
The Seller's Contact Details: Strickland Equipment Company
Contact Mike Berry at Strickland Equipment Company
Telephone: +1 972-713-0208
Cell: +1 214-957-7106
Email: [email protected]
Address
6902 Spanky Branch DriveDallas, Texas, USA
75248-1528
Opening Times
- Monday to Friday: 8:00 AM – 6:00 PM
- Saturday: 8:00 AM – 1:00 PM
- Sunday: Closed
About the Seller - Strickland Equipment Company
Strickland Equipment Co. specializes in providing high-quality construction and mining equipment. We assist buyers in finding the used machinery they need, ensuring a smooth and seamless purchase experience.
Used Equipment Sellers – List Your Prime PD500 120RP Directional Drill or Other Machinery for sale on PlantClassifieds
Add Your Used Equipment for Sale to PlantClassifieds
Prime PD500/120RP Directional Drill: Specifications and Key Information
Overview
The Prime PD500/120RP is a heavy-duty horizontal directional drilling (HDD) rig designed for large-scale infrastructure and utility installation projects. It is part of Prime Drilling’s high-capacity RP (Rack & Pinion) series, known for robust performance and reliability in challenging ground conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Pull/Thrust Force | 500 t (5,000 kN) |
| Torque | 120 kNm or 180 kNm (configurable) |
| Power Rating | 570 kW or 900 kW (engine options) |
| Inclination Angle | 8° – 16° |
| Noise Level | Max 86 dB(A) |
| Transport Length | 17.5 m |
| Transport Width | 3.2 m |
| Transport Height | 3.4 m |
| Weight (approx.) | 53,500 kg (varies by config) |
- Feed System: Rack & Pinion (RP)
- Versions: Available as crawler, trailer, or steel frame version
- Hydraulic System: Load-sensing hydraulic system
- Control Options: On-board control cabin or separate operating container

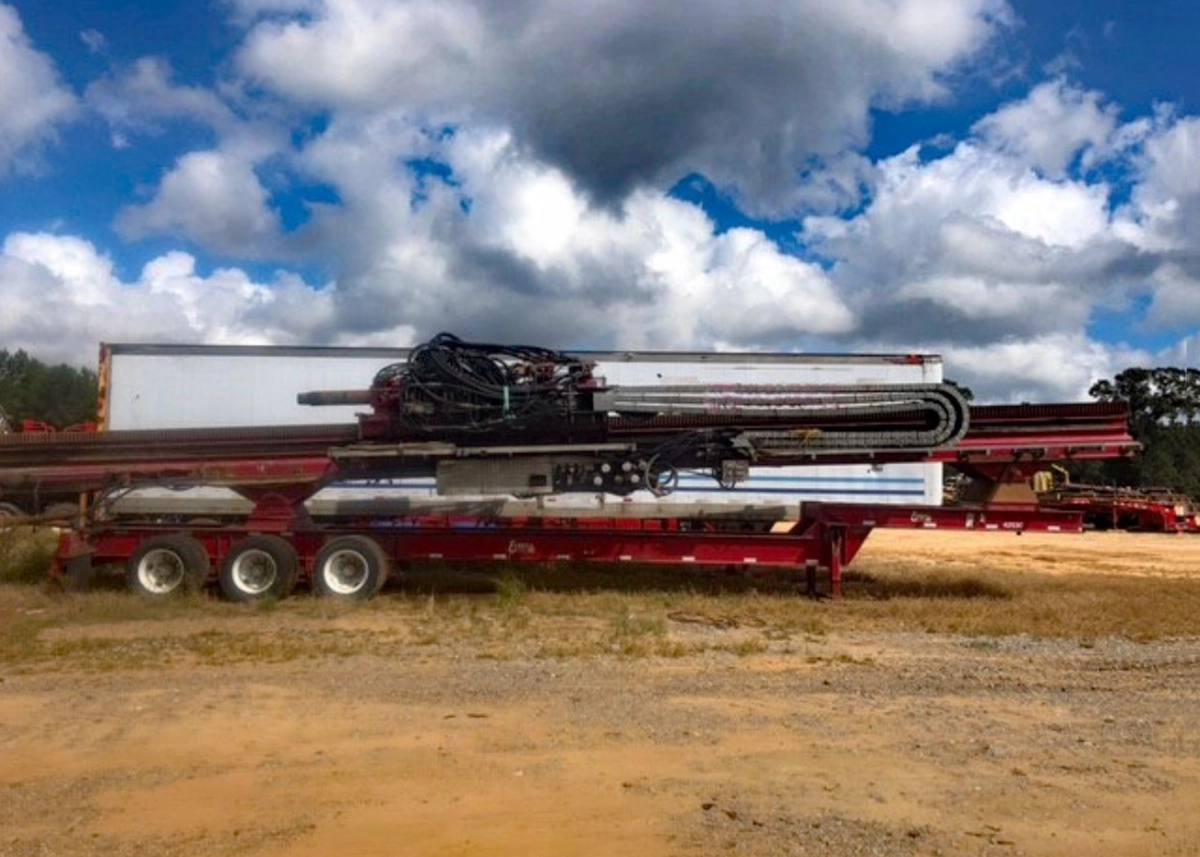

- Drill Pipe Handling: Can be equipped with automated drill pipe magazine and crane
- Additional Features: Camera system, drill data logging, hydraulic manipulator, and other customization options
Performance and Application
Drilling Length: Suitable for long bores (specific max length depends on ground conditions and pipe diameter).
Pipe Diameter: Capable of handling large-diameter pipes for significant infrastructure projects.
Engine: Water-cooled diesel engine, available in multiple power ratings for different operational needs.
Notable Features
- High Pull and Thrust: The 500 t force allows for the installation of large-diameter pipelines under rivers, roads, and other obstacles.
- High Torque: Up to 180 kNm, supporting drilling in harsh ground conditions.
- Flexible Configuration: Multiple mounting and transport options (crawler, trailer, frame).
- Operator Comfort and Safety: Options for enclosed cabins or containers with optimal visibility and control.
Summary Table: Prime PD500/120RP Key Specs
| Feature | Value / Description |
|---|---|
| Pull/Thrust Force | 500 t (5,000 kN) |
| Torque | 120/180 kNm |
| Engine Power | 570/900 kW |
| Inclination Angle | 8°–16° |
| Weight | ~53,500 kg |
| Length/Width/Height | 17.5 m / 3.2 m / 3.4 m |
| Noise Level | 86 dB(A) |
| Feed System | Rack & Pinion |
| Mounting Options | Crawler, Trailer, Steel Frame |
References
All technical data and configuration options are based on manufacturer documentation and industry listings. If you need more detailed operational data or have specific requirements (e.g., mud pump capacity, pipe handling systems), please specify your needs.
