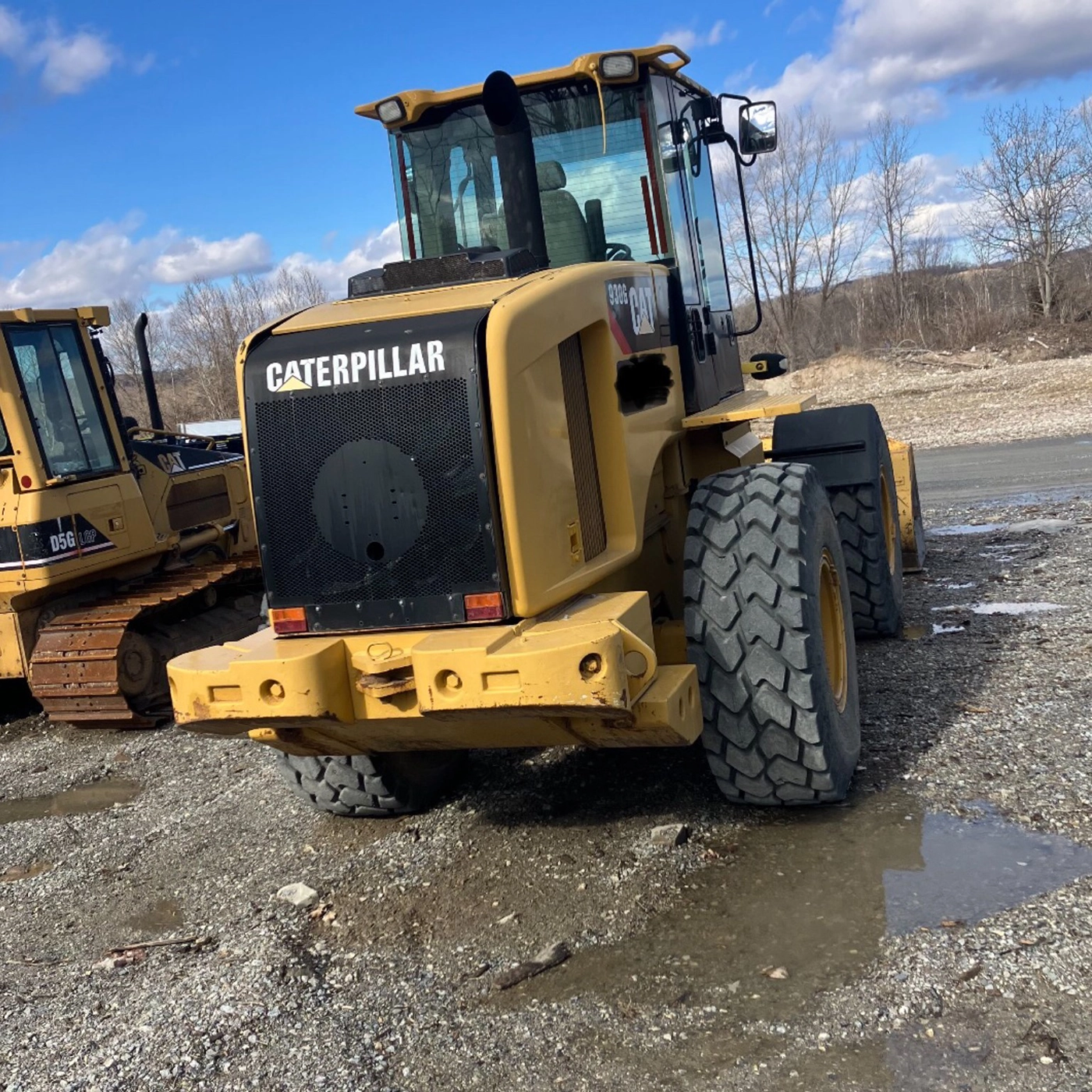

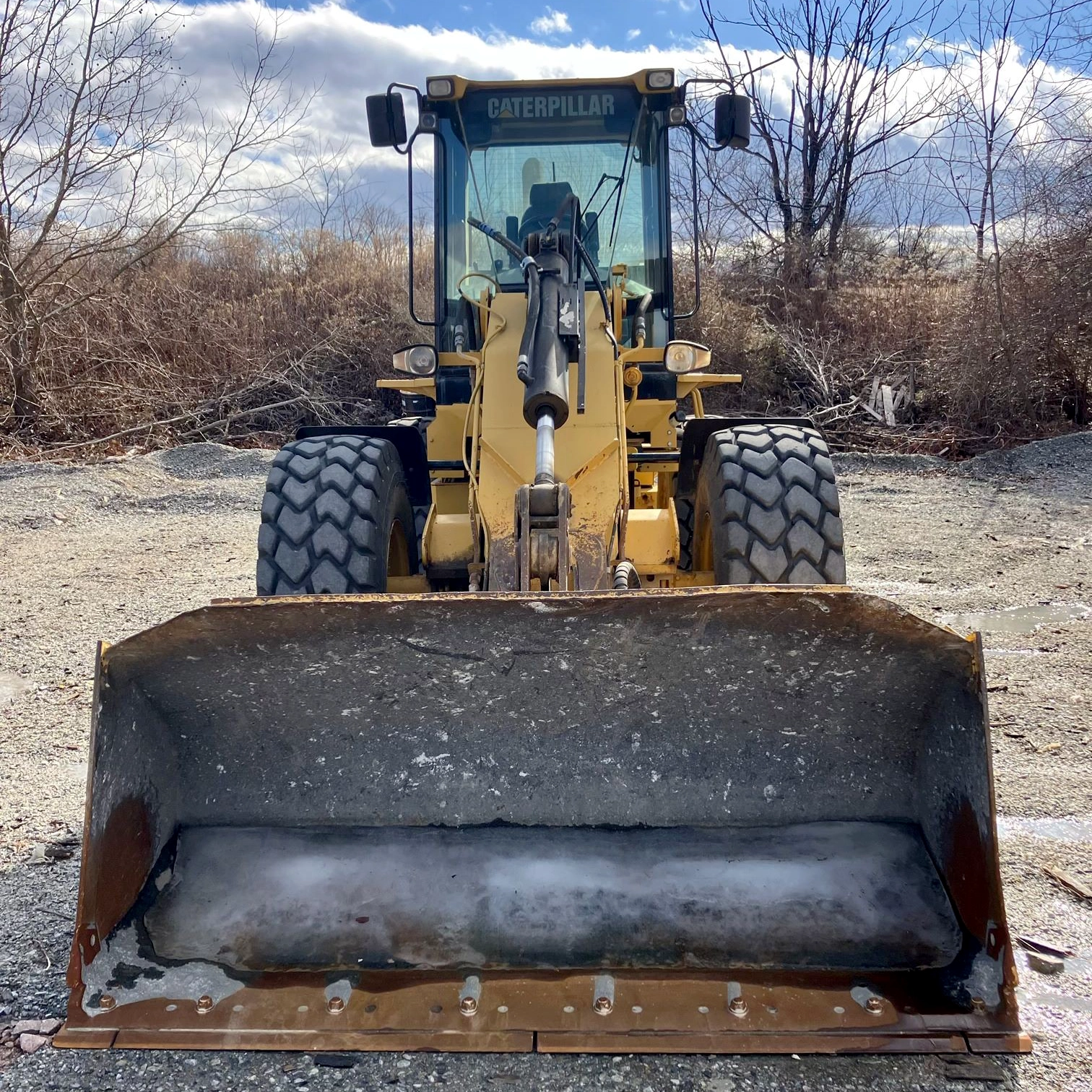

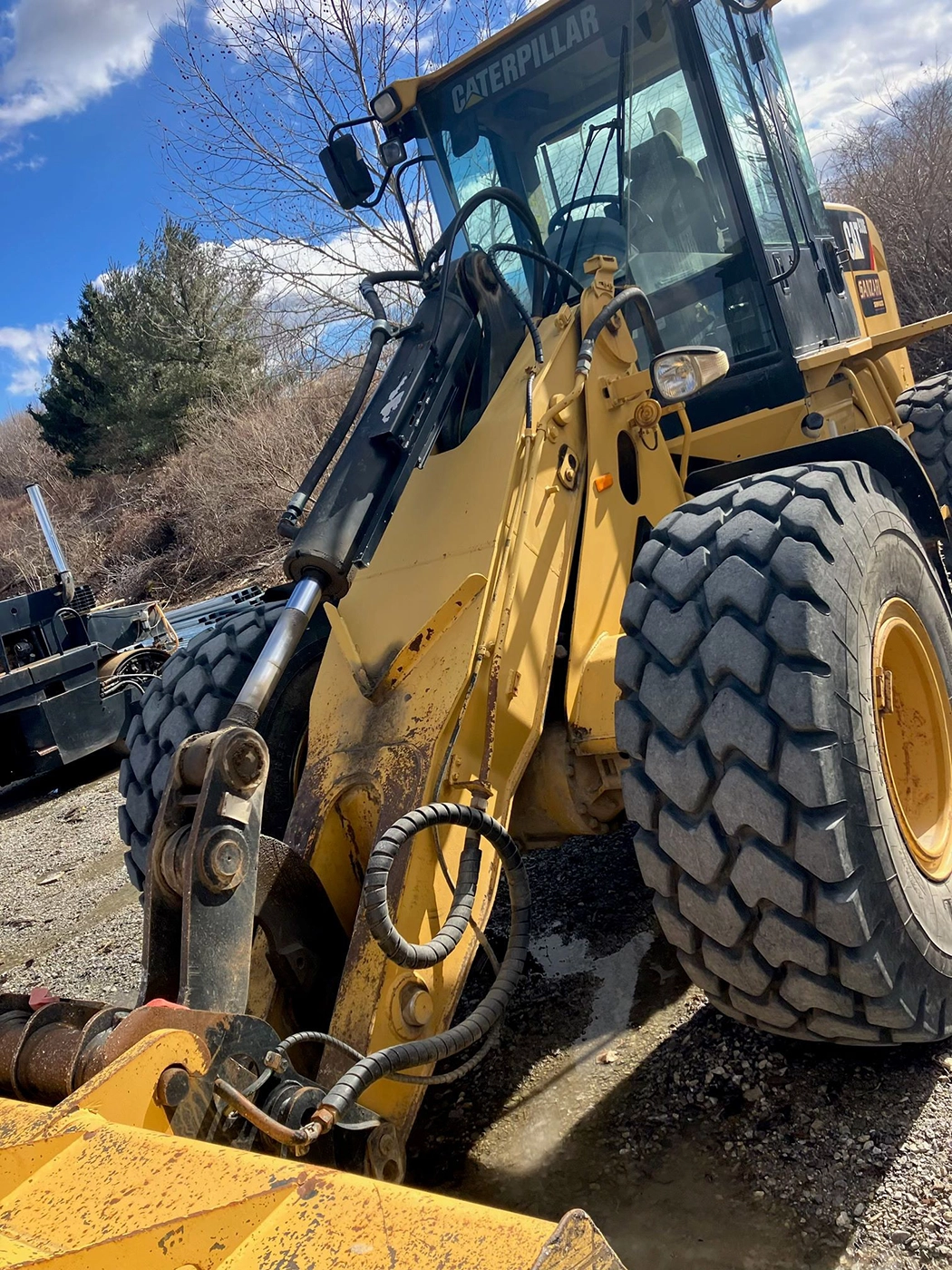

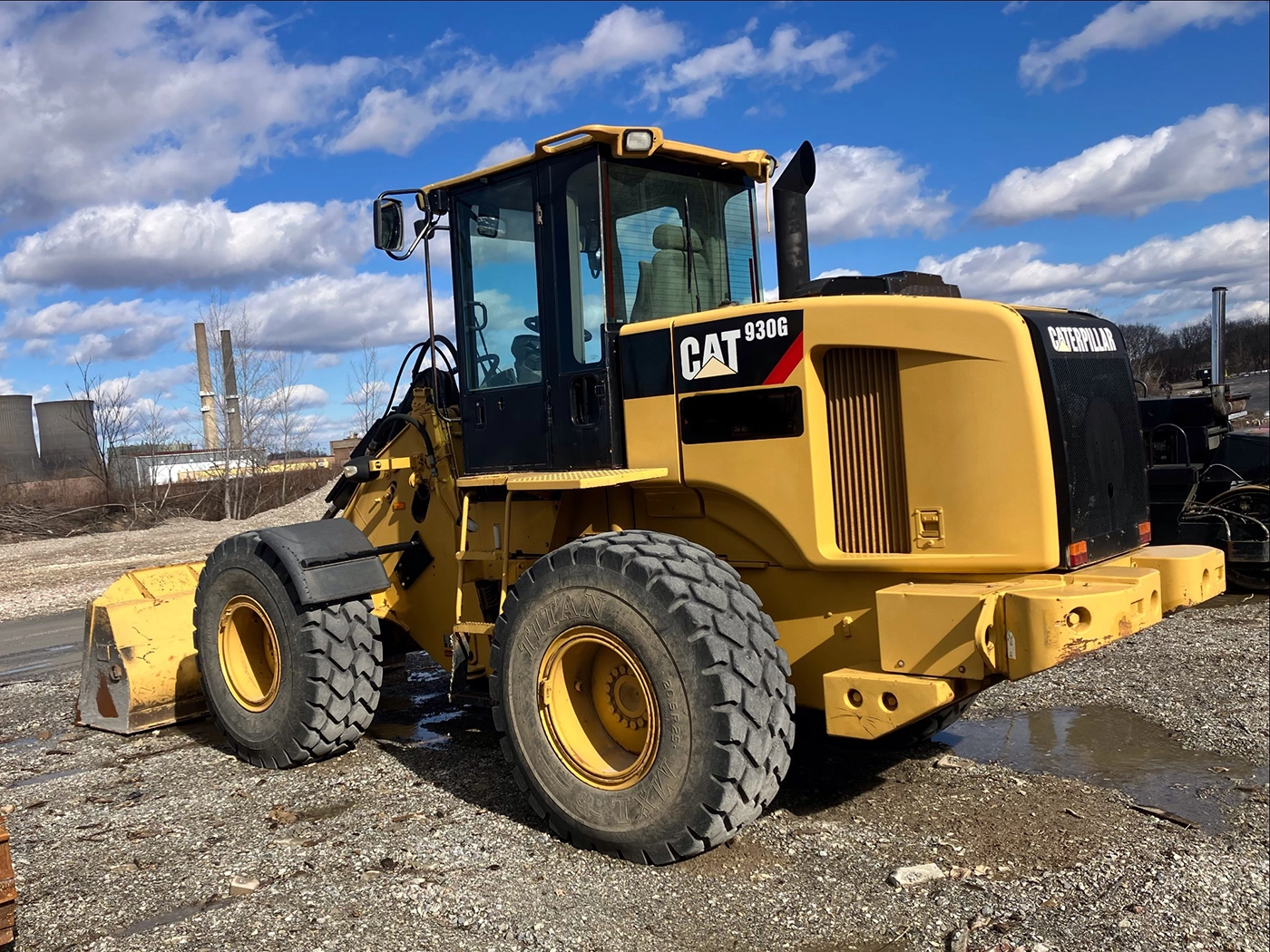

2006 CAT 930G Wheel Loader For Sale Verified listing

Contact Person

Mike Berry
Strickland Equipment Company

Telephone:
+1 972-713-0208
Cell:
+1 214-957-7106
Email:
[email protected]

Website

Visit Strickland Equipment Company

Address

Opening Times

• Monday–Friday: 8:00 AM – 6:00 PM
• Saturday: 8:00 AM – 1:00 PM
• Sunday: Closed

About Strickland Equipment Company

Strickland Equipment Co. specializes in providing high-quality construction and mining equipment.
We guide buyers through a seamless purchase experience and offer expert support on all used machinery.

Sell Your Equipment on PlantClassifieds

Used Equipment Sellers: List your 2006 CAT 930G Wheel Loader For Sale (or any other machinery) with us!

2006 CAT 930G Wheel Loader Specifications

General Information

• Manufacturer: Caterpillar
• Model: 930G
• Production Years: 2003–2007

Operating Weight

• Approx. 13,030 kg (28,725 lbs)

Dimensions

• Transport Length: 7.39 m (24.2 ft)
• Width (over tires): 2.55 m (8.4 ft)
• Height to Top of Cab: 3.35 m (11 ft)
• Wheelbase: 2.95 m (9.7 ft)

Engine

• Make: Caterpillar
• Net Power: 150 hp (112 kW)
• Gross Power: 161 hp (120 kW)
• Displacement: 6.0 L (366 cu in)
• Number of Cylinders: 6
• Power Measured @ 2300 rpm

Performance

• Bucket Capacity (heaped): 2.1 m³ (2.7 yd³)
• Bucket Width: 2.55 m (8.4 ft)
• Breakout Force: 13,766 kg (30,349 lbs)
• Static Tipping Load (straight): ~9,794 kg (21,592 lbs)
• Static Tipping Load (full turn): ~8,527 kg (18,799 lbs)
• Dump Clearance at Max Lift: 3.0 m (10 ft)
• Max Speed (Forward): 38 km/h (24 mph)
• Max Speed (Reverse): 25 km/h (16 mph)

Hydraulic System

• Pump Flow Capacity: 220 L/min (58 gpm)
• Relief Valve Setting: 25,900 kPa (3,756 psi)

Capacities

• Fuel Tank: 225 L (60 gal)
• Hydraulic System: 125 L (33 gal)
• Engine Oil: 16 L (4 gal)
• Cooling System: 40 L (11 gal)

Tires

• Standard Size: 600/65 R25

Disclaimer

Specifications provided are typical for the 2006 CAT 930G Wheel Loader and may vary depending on specific machine configuration, optional equipment, and regional specifications. While every effort ensures accuracy, incomplete data or errors may occur. Always consult the official Caterpillar documentation or a qualified dealer for accurate information before purchasing or operational decisions.

For further details, always refer to the official Caterpillar operator’s manual or contact your local CAT dealer.
