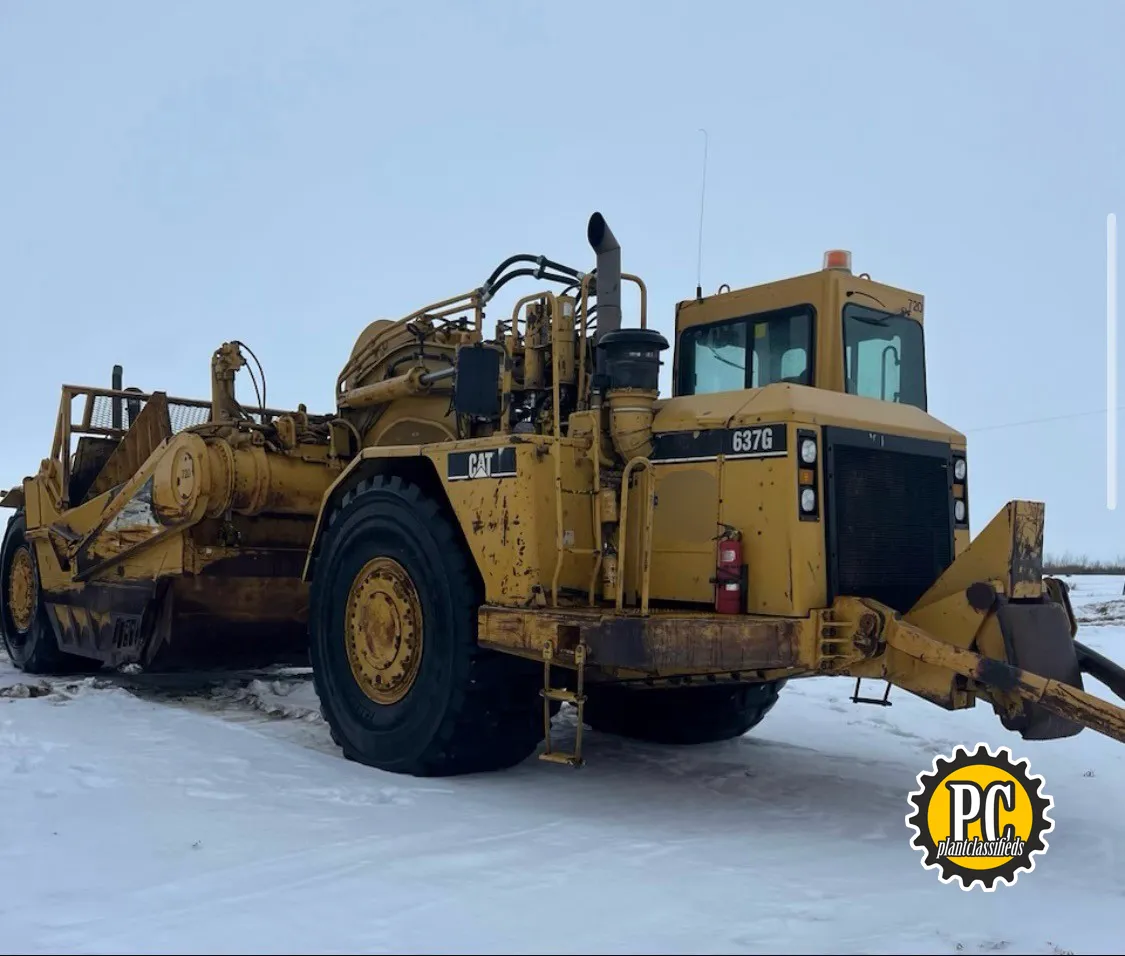

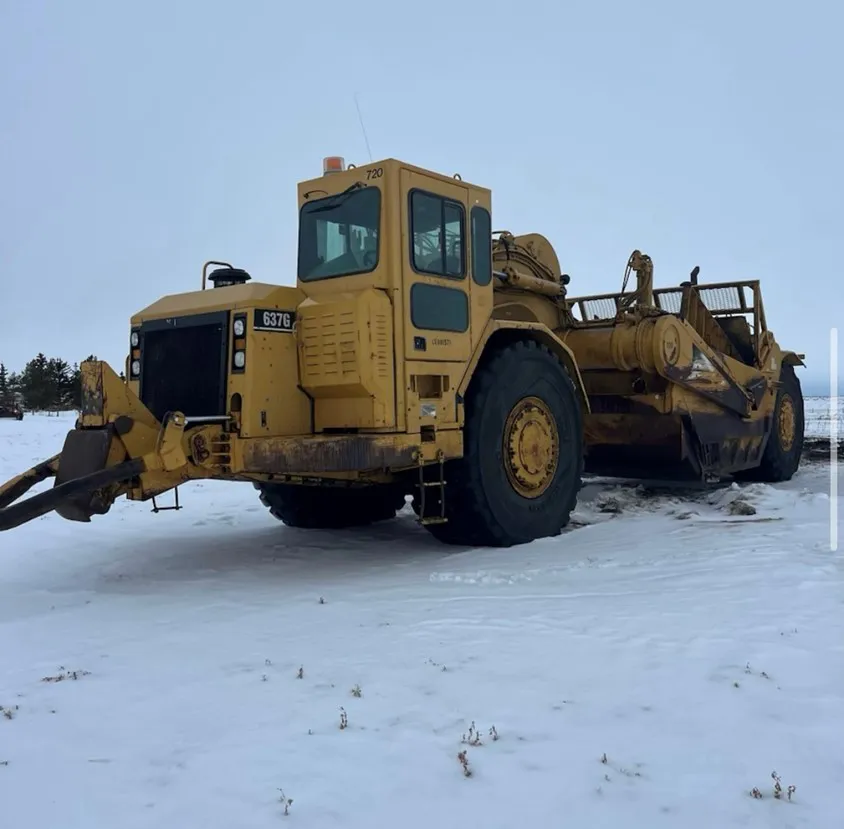

CAT 637G Motor Scrapers For Sale in Canada Verified listing

For Sale: (2) Used CAT 637G Motor Scrapers – 2003 & 2005 Models

• Make & Model: Caterpillar 637G Motor Scraper
• Year: 2003 & 2005
• Serial Numbers: CEH00413 & CEH00243
• Frame Hours: 21,689 & 20,264
• Rebuild Hours: ~10,000 hours on rebuilds

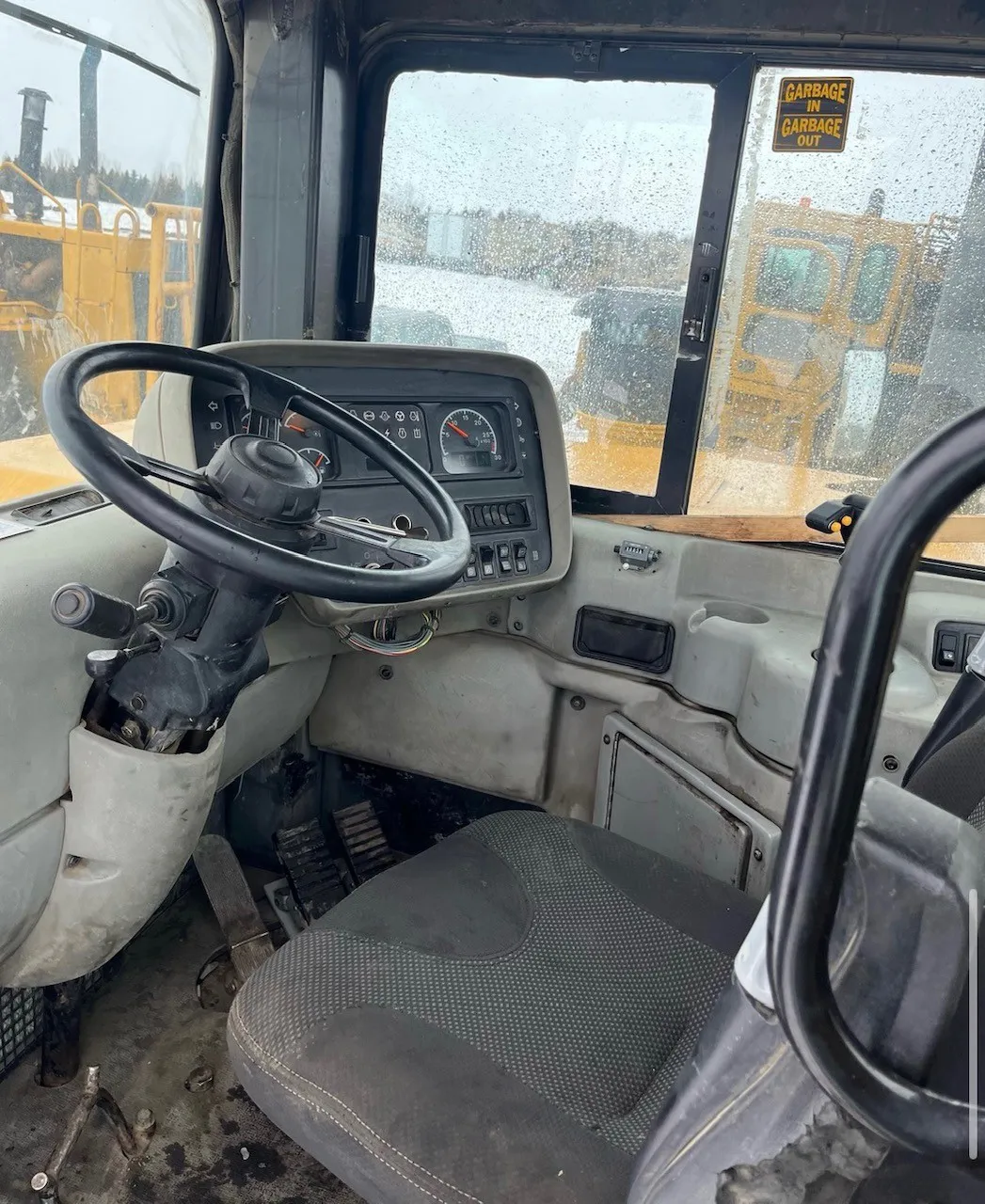

• Features: EROPS/AC, Push-Pull system, Good Condition, Good Tires
• Location: Alberta, Canada
• Price: $410,000 USD each (sold as a pair)

Heavy-duty, high-performance CAT 637G motor scrapers in good working condition with push-pull capability. Ideal for large-scale earthmoving, road construction, and mining projects.

Contact Mike Berry at Strickland Equipment Company

Telephone: +1 972-713-0208
Cell: +1 214-957-7106 (click on tab above to call Mike)
Email: [email protected] (click on tab above to email Mike)

Visit Strickland's Website

Address

Opening Times

• Monday to Friday: 8:00 AM – 6:00 PM
• Saturday: 8:00 AM – 1:00 PM
• Sunday: Closed

About the Seller - Strickland Equipment Company

Strickland Equipment Co. specializes in providing high-quality construction and mining equipment. We assist buyers in finding the used machinery they need, ensuring a smooth and seamless purchase experience.

Used Equipment Sellers - We Invite You to Sell Your CAT 637G Motor Scrapers on PlantClassifieds

Add Your Used Equipment for Sale to PlantClassifieds

2005 CAT 637G Motor Scraper Specifications:

Engine

• Tractor Engine: Cat C18 ACERT™
• Net Power: 345 kW (462 hp) in gears 1-2; 373 kW (500 hp) in gears 3-8
• Gross Power: 364 kW (488 hp) in gears 1-2; 392 kW (526 hp) in gears 3-8
• Displacement: 18 L (1,078 in³)
• Scraper Engine: Cat C9 ACERT™
• Net Power: 198 kW (266 hp) in gear 1; 211 kW (283 hp) in gears 2-4
• Gross Power: 213 kW (286 hp) in gear 1; 226 kW (303 hp) in gears 2-4
• Displacement: 8.8 L (538 in³)

Scraper Bowl

• Capacity:
• Heaped: 26 m³ (34 yd³)
• Struck: 18.3 m³ (24 yd³)
• Rated Load: 37,200 kg (82,200 lb)
• Cutting Edge Thickness: 28 mm (1.12 in)
• Maximum Depth of Cut: 426 mm (16.8 in)
• Width of Cut: 3,512 mm (138.3 in)

Performance

• Top Speed (Loaded): 55.8 km/h (34.7 mph)
• Turning Radius: Curb-to-curb width of a 180° turn is approximately 12.2 m (40 ft)

Hydraulics

• Steering Circuit Flow Rate: 379 L/min (100 gal/min)
• Scraper Circuit Flow Rate: 344 L/min (91 gal/min)
• Relief Valve Pressure:
• Steering Circuit: 13,500 kPa (1,958 psi)
• Implement Circuit: 15,000 kPa (2,176 psi)

Dimensions

• Overall Width: Approximately 3.94 m (12.93 ft)
• Overall Shipping Height: Approximately 4.15 m (13.62 ft)
• Ground Clearance: Maximum of about 533 mm (21 in)

Additional Features

• Tires:
• Tractor and Scraper Tires: Size 37.25R35 E3
• Fuel Tank Capacity:
• Tractor: Approximately 1,268 L (335 gal)
• Scraper: Approximately 1,400 L (370 gal)

Note: Specifications may vary based on the exact configuration and options. Please refer to the official Caterpillar technical documentation for the most accurate information.
