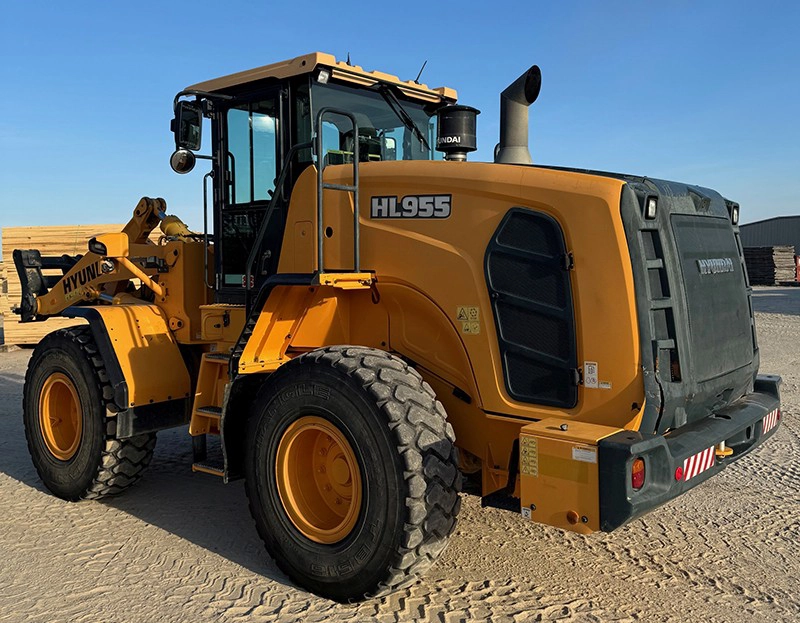

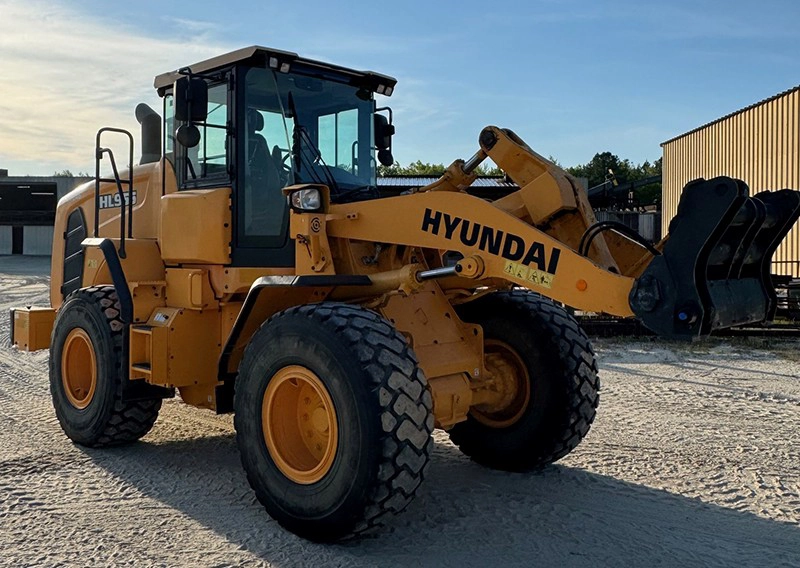

2021 Hyundai HL955 For Sale in NC Verified listing

Contact Person

Mike Berry
Strickland Equipment Company

Telephone:
+1 972-713-0208
Cell:
+1 214-957-7106
Email:
[email protected]

Website

Visit Strickland Equipment Company

Address

Opening Times

• Monday–Friday: 8:00 AM – 6:00 PM
• Saturday: 8:00 AM – 1:00 PM
• Sunday: Closed

About Strickland Equipment Company

Strickland Equipment Co. specializes in providing high-quality construction and mining equipment.
We guide buyers through a seamless purchase experience and offer expert support on all used machinery.

Sell Your Equipment on PlantClassifieds

Used Equipment Sellers: List your CAT 777D Haul Trucks For Sale (or any other machinery) with us!

Engine

• Model: Cummins QSB6.7 (Stage IV) / B6.7 (Stage V)
• Type: Water-cooled, 4-cycle, turbocharged, charge air-cooled, direct injection, electronically controlled diesel engine
• Rated Power: 149 kW (approx. 200 hp)
• Max Torque: 1300 rpm

Performance

• Operating Weight: 15,100 kg (HL955) / 15,600 kg (HL955 XT)
• Bucket Capacity (Heaped): 2.8 m³ (3.6 yd³)
• Bucket Capacity (Struck): 2.4 m³ (3.1 yd³)
• Tipping Load: 11,300 kg
• Breakout Force: 35° (exact value not specified)

Dimensions

• Width: 2,810 mm (9 ft 3 in)
• Height to Top of Cabin: 3,390 mm (11 ft 1 in)
• Length: 7,625 mm (25 ft 0 in)
• Dumping Clearance at Max Height (45°): 2,840 mm (9 ft 3.8 in)
• Reach at Full Lift: 1,125 mm (3 ft 8.3 in)

Transmission

• Type: Computer controlled, electronic soft shift, auto-shift, kick-down
• Forward/Reverse: 4F/3R or 5F/3R (with lock-up clutch option)
• Max Travel Speed: Up to 40 km/h (24.9 mph) with 5-speed transmission

Axles & Drive

• Four-wheel drive system
• Rigid front axle, oscillating rear axle (±11°)
• Planetary reduction at wheel end

Hydraulic System

• Load sensing hydraulic system
• Boom kickout and bucket positioner (automatic)
• Hydraulic Tank Capacity: 108 liters

Service Capacities

• Fuel Tank: 250 liters
• DEF Tank: 27 liters
• Cooling System: 42 liters
• Hydraulic System (total): 188 liters

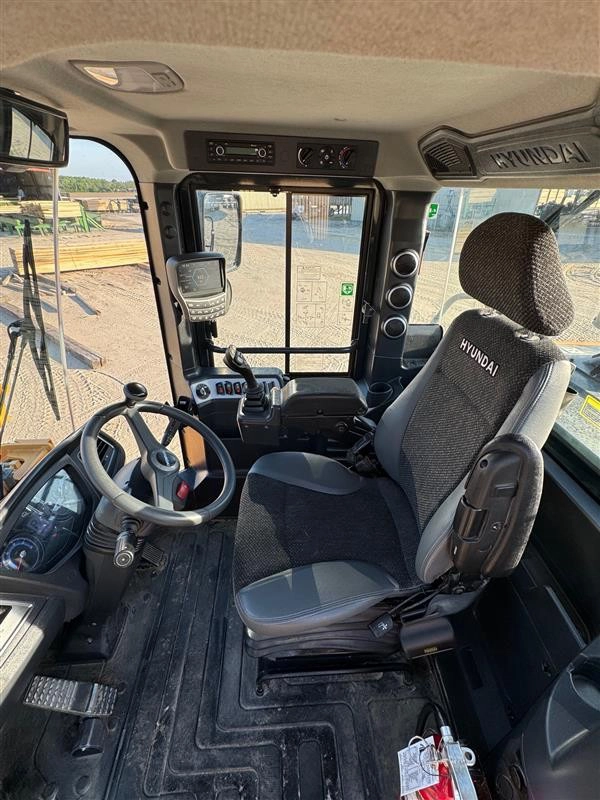

Cabin & Features

• Sound suppressed and pressurized cabin
• Automatic climate control, air conditioning, heater, defroster
• Adjustable seat with seat belt
• LED work lights, rear wiper, mirror heat
• Onboard weighing system (option)
• Hi-MATE telematics (standard)

Tires

• Standard: 20.5 R25, L3

Disclaimer

Specifications are based on information from Hyundai Construction Equipment and related sources for the 2021 Hyundai HL955 model. Actual machine configuration, features, and performance may vary depending on regional specifications, optional equipment, and manufacturer updates. For precise, up-to-date details and to confirm suitability for your application, always consult the official Hyundai documentation or your authorized Hyundai dealer.
