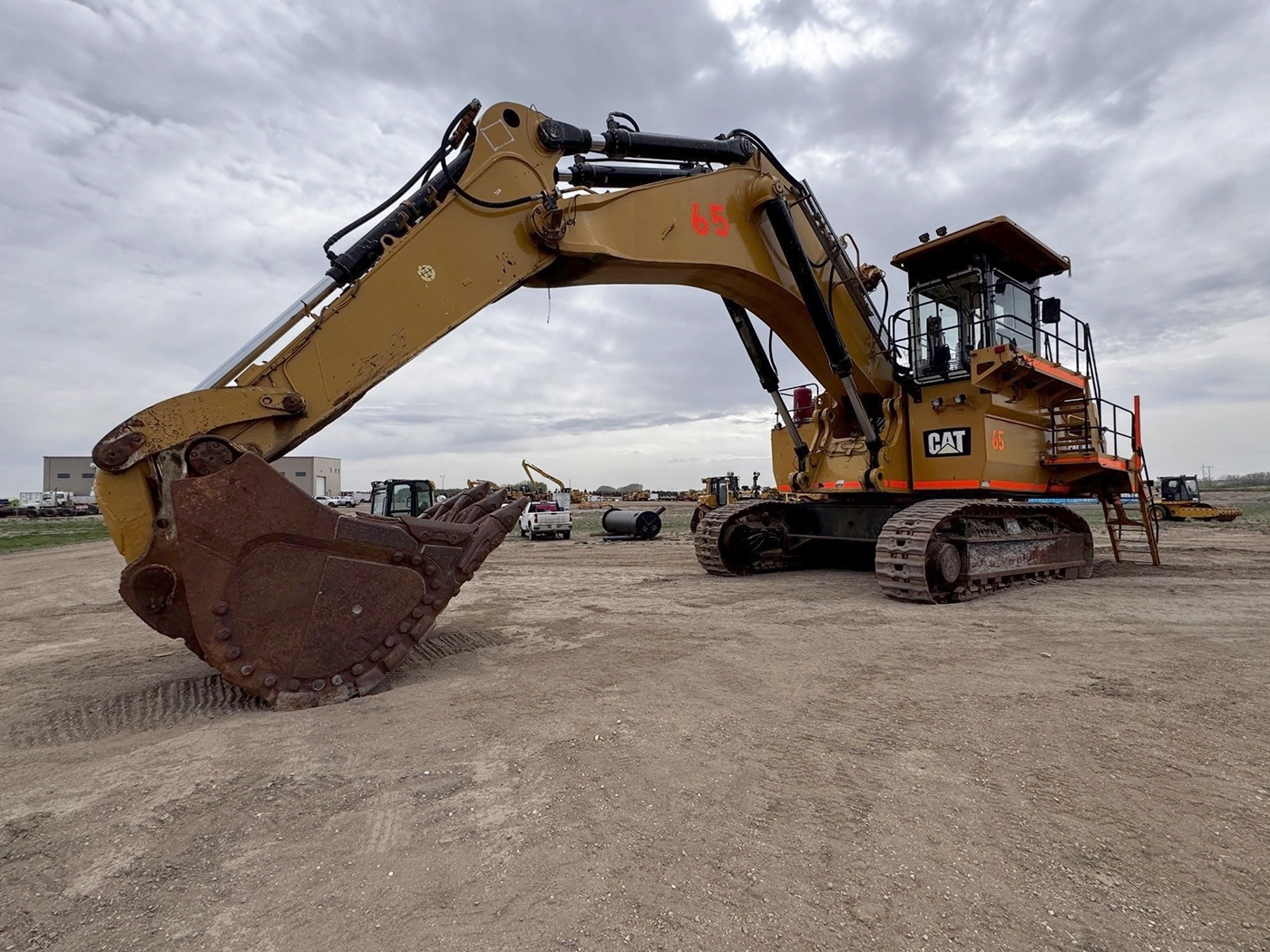

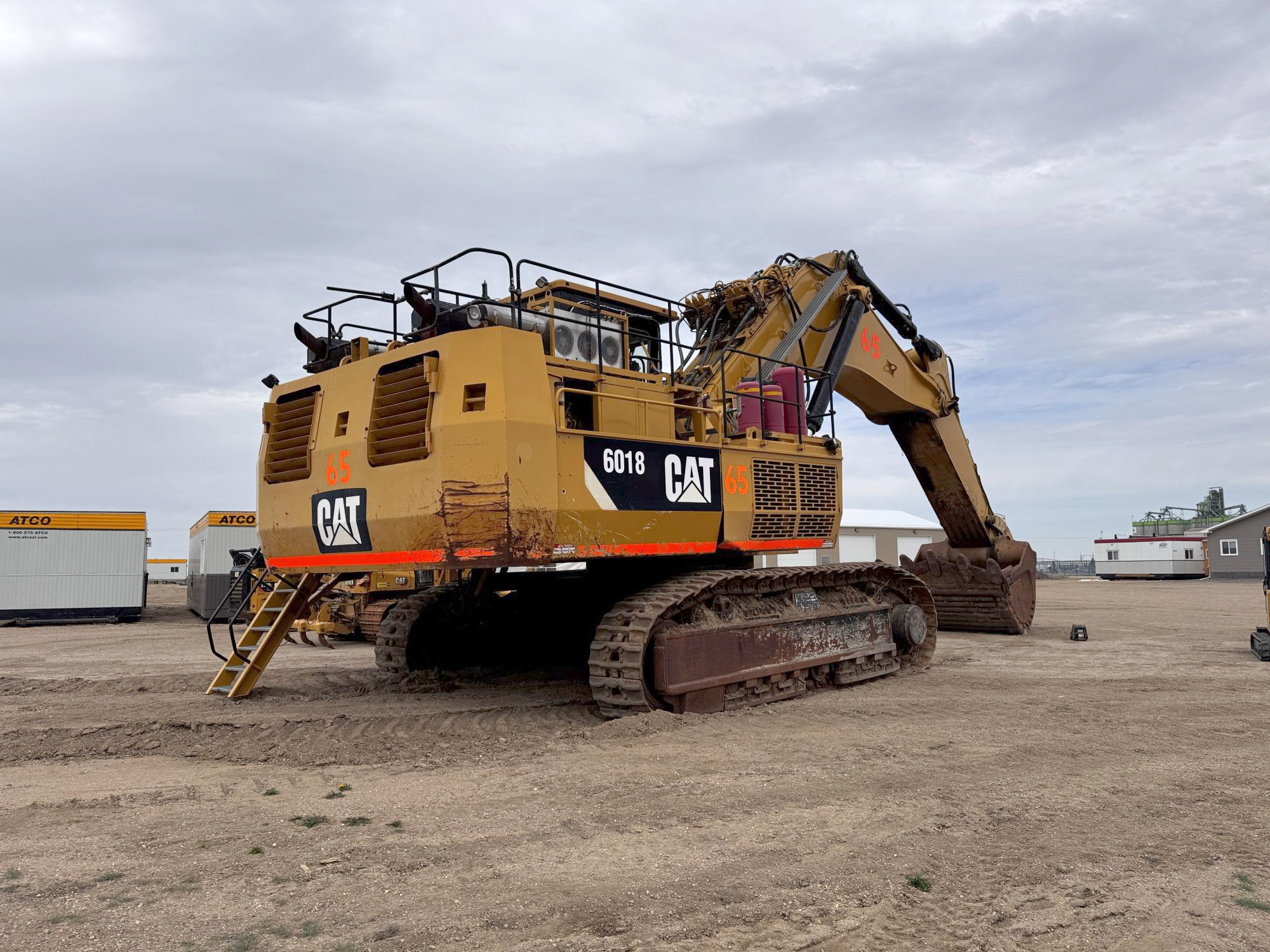

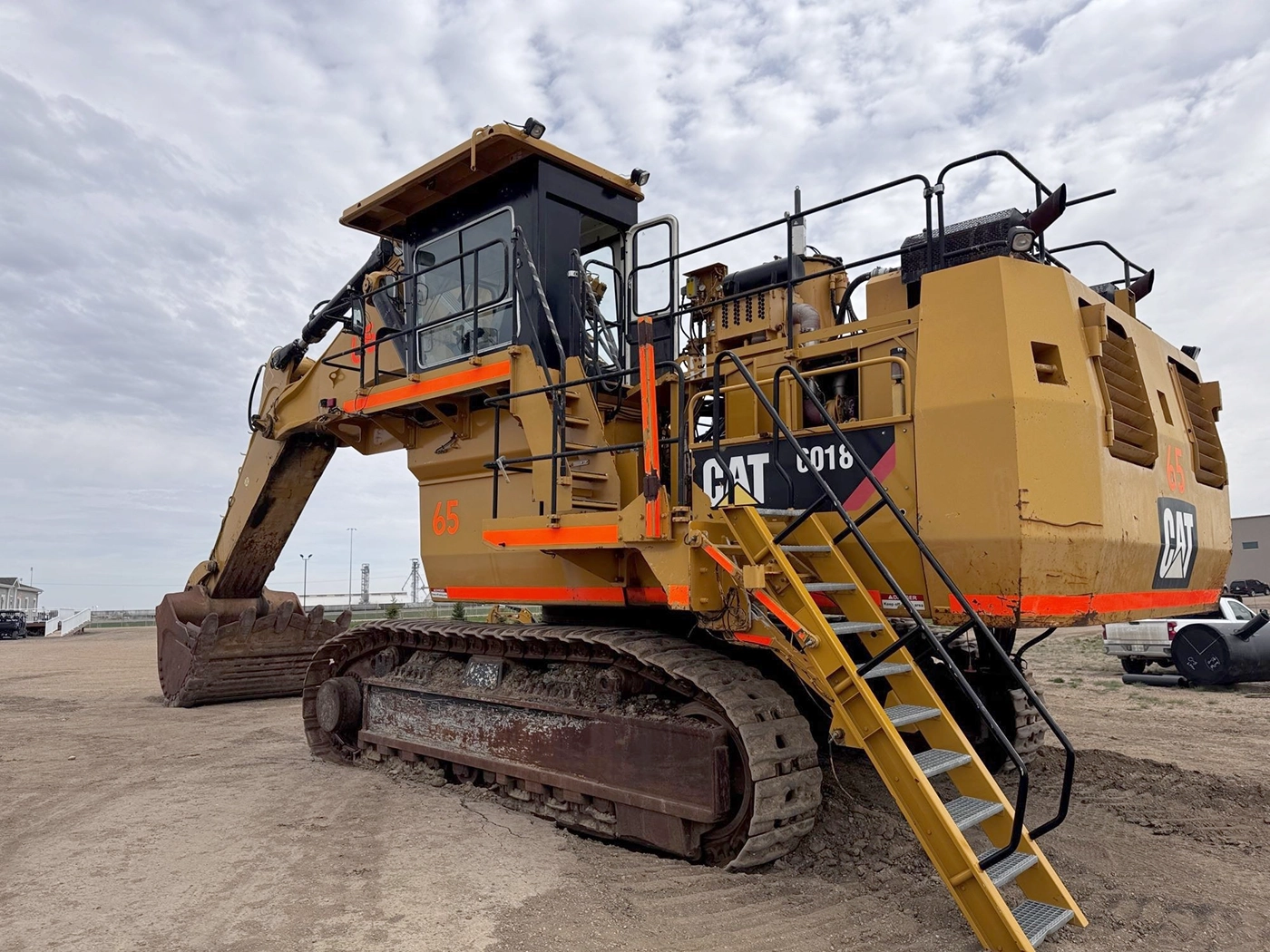

2013 CAT 6018 Excavator For Sale MT Verified listing

General Information

• Model: CAT 6018 (also available as 6018 FS Face Shovel)
• Year: 2013 (specifications reflect the 2013 model year)

Engine

• Type: Twin-engine configuration
• Model: 2 × Cat C18 ACERT (Tier 3)
• Total Rated Gross Power (SAE J1995): 858 kW (1,150 hp) at 1,800 min⁻¹
• Total Rated Net Power (ISO 3046/1 & SAE J1349): 824 kW (1,104 hp) at 1,800 min⁻¹
• Number of Cylinders (each engine): 6
• Displacement: 18.1 L per engine
• Aspiration: Turbocharged and charge air cooled
• Fuel Tank Capacity: 3,200 L
• Emissions: U.S. EPA Flex, EU Flex

Operating Weight

Undercarriage

• Track Pads (each side): 47
• Bottom Rollers (each side): 8
• Support Rollers (each side): 2 plus a skid plate
• Travel Drives (each side): 1 planetary transmission with 1 axial piston motor
• Travel Speed (Diesel): Up to 2.3 km/h
• Maximum Tractive Force: 1,239 kN
• Gradeability: 88%
• Parking Brakes: Wet multiple disc, spring-applied/hydraulically released

Buckets

• Standard Bucket Capacity:
  • Face Shovel (heaped 2:1): 10.0 m³ (13.1 yd³)
  • Backhoe (heaped 1:1): 10.0 m³ (13.1 yd³)

Hydraulic System

• Hydraulic Tank Capacity: ~2,000 L
• Main Pumps (Diesel): 4 × variable swash plate pumps, max oil flow 4 × 412 L/min
• Max Pressure (Attachment): 300 bar
• Max Pressure (Swing): 370 bar
• Total Hydraulic Oil Volume: ~2,500 L

Swing System

• Max Swing Speed (Diesel): 4.7 RPM
• Swing Drives: 2 compact planetary transmissions with axial piston motors

Cab and Controls

• Operator’s Eye Level: Diesel version approx. 5.4 m
• Cab Internal Dimensions: Length 1,800 mm, Width 1,300 mm, Height 2,150 mm
• Features: Pneumatically cushioned and multi-adjustable seat, FOPS (rock guard), joystick controls, Board Control System (BCS), armored safety glass, auxiliary seat, emergency exit harness, retractable boarding ladder

Other Features

• Automatic Central Lubrication System: Grease drum capacity 200 L
• Electrical System (Diesel): 24 V, 4 × 210 Ah batteries, 8 × Xenon working lights
• Retractable Service Station: Installed beneath engine module for ground-level access

Disclaimer

Specifications are provided for reference only and are based on sources available for the 2013 CAT 6018 excavator. Features, weights, and capacities may vary depending on the configuration, optional equipment, and regional requirements. Materials and specifications are subject to change without notice by the manufacturer. Always consult the official Caterpillar documentation or contact your local CAT dealer for the most accurate and up-to-date information.
