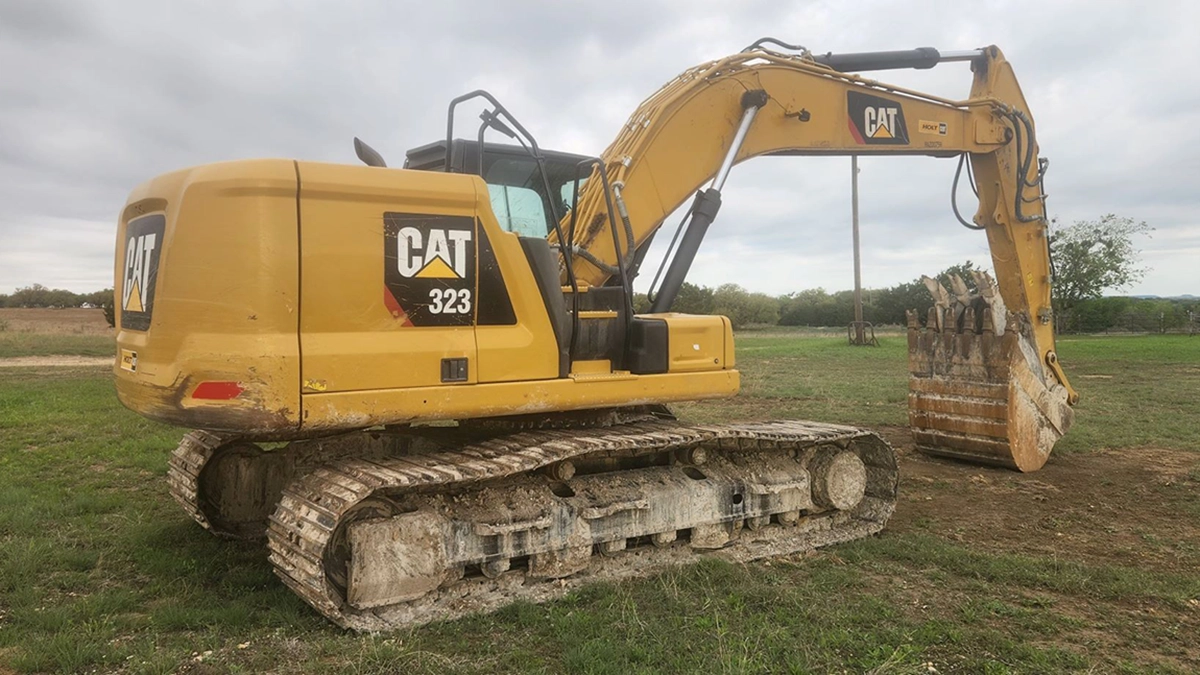

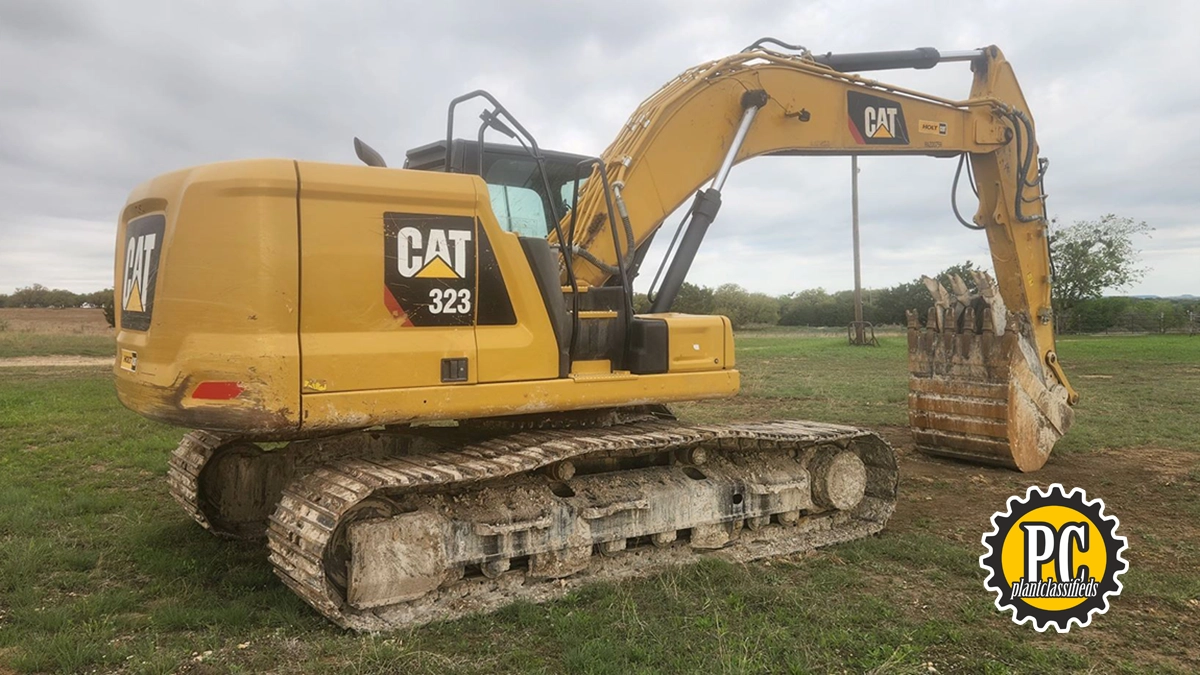

2018 CAT 323 Excavator For Sale in TX Verified listing

Contact Person

Mike Berry
Strickland Equipment Company

Telephone:
+1 972-713-0208
Cell:
+1 214-957-7106
Email:
[email protected]

Website

Visit Strickland Equipment Company

Address

Opening Times

• Monday–Friday: 8:00 AM – 6:00 PM
• Saturday: 8:00 AM – 1:00 PM
• Sunday: Closed

About Strickland Equipment Company

Strickland Equipment Co. specializes in providing high-quality construction and mining equipment.
We guide buyers through a seamless purchase experience and offer expert support on all used machinery.

Sell Your Equipment on PlantClassifieds

Used Equipment Sellers: List your CAT 777D Haul Trucks For Sale (or any other machinery) with us!

General 2018 CAT 323 Excavator Specifications

Engine

• Model: Cat® C7.1 ACERT™
• Net Power (ISO 9249): 121 kW (162 hp)
• Gross Power (ISO 14396): 122 kW (164 hp)
• Displacement: 7.01 L
• Bore: 105 mm
• Stroke: 135 mm
• Emissions: Meets EU Stage IV, U.S. EPA Tier 4 Final, and Japan 2014 standards
• Rated speed: 1,800 rpm

Operating Weight

With 5.4 mt (11,900 lb) counterweight, long undercarriage, HD reach boom, R2.9 m (9'6") stick, 1.30 m³ (1.70 yd³) HD bucket:

• 600 mm (24") shoes: 24,100 kg (53,100 lb)
• 700 mm (28") shoes: 24,500 kg (54,000 lb)
• 790 mm (31") shoes: 24,800 kg (54,700 lb)

Dimensions & Working Ranges

• Boom: HD Reach, 5.7 m (18'8")
• Stick: HD Reach, R2.9 m (9'6") or R2.5 m (8'2")
• Maximum Digging Depth: 6,730 mm (22'1")
• Maximum Reach at Ground Level: 9,870 mm (32'5")
• Maximum Cutting Height: 9,450 mm (31'0")
• Maximum Loading Height: 6,480 mm (21'3")
• Maximum Vertical Wall Digging Depth: 5,740 mm (18'10")

Bucket & Forces

• Standard Bucket Capacity: 1.30 m³ (1.70 yd³)
• Bucket Digging Force (ISO): 140 kN
• Stick Digging Force (ISO): 107 kN
• Bucket Digging Force (SAE): 124 kN
• Stick Digging Force (SAE): 104 kN

Hydraulic System

• Hydraulic System (incl. tank): 234 L
• Hydraulic Tank: 115 L

Service Refill Capacities

• Fuel Tank: 345 L
• Cooling System: 25 L
• Engine Oil: 25 L
• Swing Drive: 12 L
• Final Drive (each): 4 L

Undercarriage

• Track Shoe Options: 600 mm (24"), 700 mm (28"), 790 mm (31"), 900 mm (35") triple-grouser shoes

Sound Performance

• Exterior (ISO 6395:2008): 100 dB(A)
• Inside Cab (ISO 6396:2008): 70 dB(A)

Swing Mechanism

• Swing Speed: 11.3 rpm

Cab & Safety

• ROPS: ISO 12117-2:2008
• FOGS (optional): ISO 10262:1998 Level II
• Brakes: ISO 10265:2008

Other Features

• Standard high-ambient temperature capability: 52°C (125°F)
• Cold start capability: –18°C (0°F), optional –32°C (–25°F)
• 2 × 1,000 CCA maintenance-free batteries
• Programmable LED working lights
• Rearview and right-hand-side cameras (region dependent)

Disclaimer

The specifications provided above are for general reference only and may vary depending on the specific configuration, attachments, regional requirements, and manufacturing updates. For the most accurate and up-to-date information, always consult the official Caterpillar documentation or contact your local Cat dealer. The information is provided "as is" without warranty of any kind.
