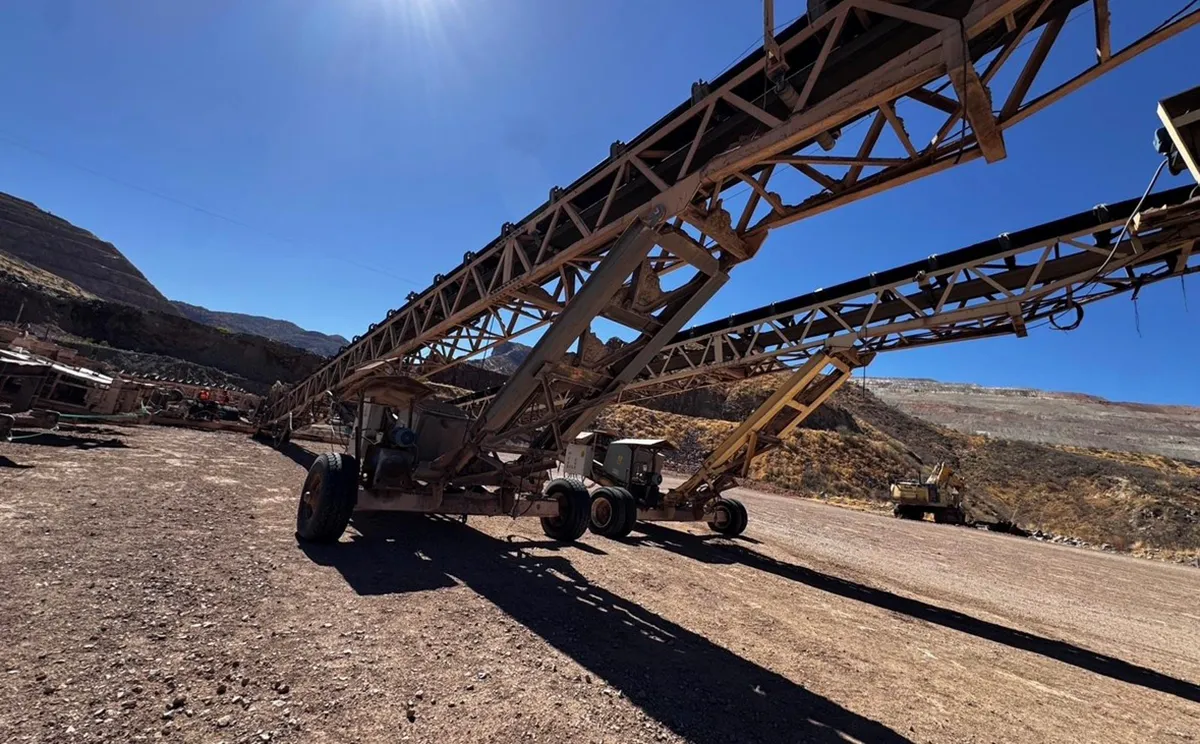

Superior 105 x 48 Raised Conveyors For Sale TX Verified listing

Price: $45,000 USD each | Location: Ex Works, Texas, USA

Check out our other listings of Superior 105’ x 48” Overland Conveyor Sections for sale in Texas.

🛠 Equipment Specifications

• Make & Model: Superior 105’ x 48” Raised Transfer Conveyor
• Type: Transfer Conveyor Section
• Quantity: 3 Units Available
• Year of Manufacture: 2016
• Conveyor Length: 105 feet
• Belt Width: 48 inches
• Drive System: Electric Motors Included
• Material: Heavy-duty steel frame
• Usage: Raised transfer applications

⚙️ Features

• Electric motors included – fully operational
• 48” conveyor belt in excellent condition
• Dry system use – no corrosion or wet material exposure
• Built for durability in heavy-duty environments
• Perfect for sand, gravel, or aggregate material handling

🔎 Serial Number

Available upon request for each unit.

✅ Condition

• Condition: Excellent – fully functional, well-maintained
• History: Used in dry aggregate system only

📸 Photos & Videos

Photos and walk-around video available on request. Live video inspections possible for serious inquiries.

💵 Pricing

• Price: $45,000 USD each
• Terms: Ex Works – Texas, USA
• Bulk Discount: Available for multiple unit purchases

📍 Location

Units located in Texas, USA. Buyer to arrange transport. Loading assistance available on-site.

📞 Contact Us

Contact us for more details, photos, or to arrange an inspection.

2016 Superior 105’ x 48” Raised Transfer Conveyor Sections Specifications

Overview

The Superior 105’ x 48” Raised Transfer Conveyor is a heavy-duty, high-capacity conveyor section designed for bulk material handling in aggregate, mining, and construction applications. While the 105’ length is not a standard catalogue size, it closely aligns with the 110’ and 100’ models, and the 48” belt width is among the largest offered for high-throughput operations.

Below are the typical specifications and features for this class of conveyors, based on 2016 Superior Industries product documentation and industry listings.

Key Specifications

SpecificationValue/Range

Conveyor Length 105 feet (approx. 32 meters)

Belt Width 48 inches (1,219 mm)

Truss Depth Typically 42” for 48” belt width

Belt Speed Up to 400 feet per minute (FPM)

Capacity Up to 2,400 tons per hour (TPH) (varies by material)

Incline Angle Standard 18°, custom options available

Raised Discharge Height Approx. 36–41 feet (varies by setup)

Frame Type Lattice truss, heavy-duty steel

Drive Electric motor, shaft-mounted reducer

Undercarriage Raised, with optional hydraulic lift

Mobility Fixed or portable (axle options available)

Weight (approx.) 30,000–40,000 lbs (varies by configuration)

Standard Features

• Chevron® Pulley: V-shaped design to reduce belt wear and extend pulley life.
• Sealing System: Maintains a tight seal between the belt and skirting to prevent spillage.
• Heavy-Duty Truss: Engineered for structural integrity and long service life.
• Impact Bed and Idlers: Protects belt in loading zones.
• Return Rollers: Urathon® or Moxie® options for sticky materials.
• Belt Cleaners: Exterra® SFL dual belt cleaner for efficient material removal.
• Safety Guards: Yellow-painted metal guarding for operator safety.
• Hydraulic Raise/Lower: Optional for quick setup and transport.
• Receiving Hopper: Optional bolt-on design for material transfer.

Options and Upgrades

• Galvanized or Epoxy Paint Finish: For corrosion resistance.
• Belt Scale: For inventory and throughput monitoring.
• Auto Greaser: Automated lubrication system.
• Onboard Power: Diesel engine for remote operation.
• Walkways and Platforms: For maintenance access.
• Lighting and Safety Packages: For night or low-light operation.

Typical Applications

• Aggregate stockpiling
• Mining material transfer
• Construction site material handling
• Port and terminal bulk transfer

Notes

• The 105’ length is not a standard catalogue size but is available as a custom or sectional configuration.
• Specifications may vary based on the exact model year, options, and site requirements.
• For precise technical drawings, load ratings, and installation requirements, consult Superior Industries or an authorized dealer directly.

For precise technical details such as drive horsepower, idler spacing, and specific accessories, consult the product handbook or request a detailed datasheet from Superior Industries or an authorized dealer.

We provide the specifications, features, and technical information in this document for informational purposes only and reserve the right to change them without prior notice. While we strive to ensure accuracy, we do not warrant or guarantee the accuracy or completeness of the information presented.
