2019 Takeuchi TB210R Extremely Clean

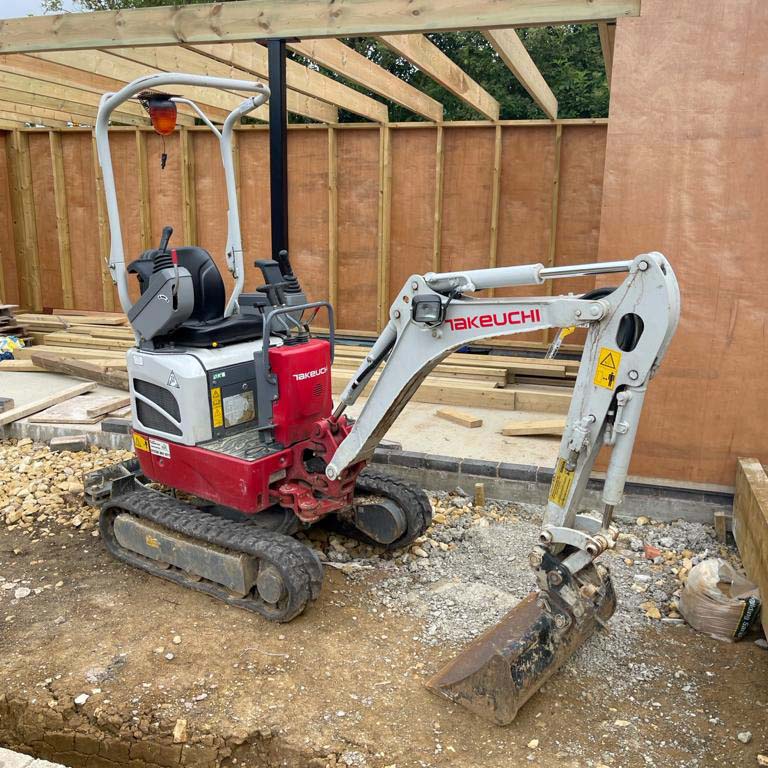

2019 Takeuchi TB210R

Plant Machine Details:

Model: 2019 Takeuchi TB210R
Hours: 341
Location: Peterborough, United Kingdom
Buckets: 4

Visit Takeuchi's TB210R website.

Customers other plant machines for sale <a href="https://plantclassifieds.com/listing/2020-caterpillar-3035e-cr/

OPERATING PERFORMANCE
Operating Weight 1,150 kg
Bucket Capacity (Heaped) 0.022 m³
Slew Speed 10.0 min-1
Travel Speed

1st 2.0 km/h
2nd 3.7 km/h
Gradeability 15°
Ground Pressure 28.0 kPa
Maximum Bucket Breakout Force 11.2 kN

Maximum Arm Digging Force 6.4 kN
Traction Force 12.8 kN
Boom Swing Angle (Left/Right) 85° / 85°

ENGINE

Model Kubota / D722-E4B
Rated Output (ISO 14396) 8.8 kW/2,200 min-1
Maximum Torque 36.0 Nm/1,900 min-1
Displacement 719 ml
Alternator 12V - 0.48 kW
Battery (IEC 60095-1) 12V - 36 A h
FLUID CAPACITY

Engine Lubrication 2.8 L
Cooling System 4.0 L
Fuel Tank Capacity 12.0 L
Hydraulic Reservoir Capacity 9.0 L
Hydraulic System Capacity 15.0 L

HYDRAULIC SYSTEM

P1, P2 Gear Pump
Flow Rate 11.1 L/min
Relief Pressure 18.2 MPa
P3 Gear Pump
Flow Rate 5.8 L/min
Relief Pressure 3.4 MPa
Service Port 1

Flow Rate 22.0 L/min
Hydraulic Pressure 18.2 MPa
SAFETY and HEALTH

Vibration Levels

Hand / Arm < 2.5 m/s²
Body < 0.5 m/s²
Noise Level

Sound Power Level LWA 91 dB

MACHINE DIMENSIONS 880 mm Arm
Maximum Reach 3,285 mm
Maximum Reach at Ground Level 3,220 mm
Maximum Digging Depth 1,755 mm
Maximum Vertical Digging Depth 1,475 mm
Maximum Height of Cutting Edge 2,985 mm
Maximum Dumping Height 2,120 mm
Front Swing Radius 1,320 mm
Front Swing Radius with Boom Offset 980 mm
Slew Radius 610 mm
Overall Length 2,955 mm
Overall Length (canopy folded) 3,415 mm
Overall Height 2,190 mm
Overall Height (canopy folded) 1,475 mm
Upper Structure Overall Width 750 mm
Ground Clearance 160 mm
Crawler Base 1,005 mm
Crawler Overall Length 1,325 mm
Crawler Overall Width - Crawler Retracted 750 mm
Crawler Overall Width - Crawler Extended 1,020 mm
Crawler Shoe Width 180 mm
